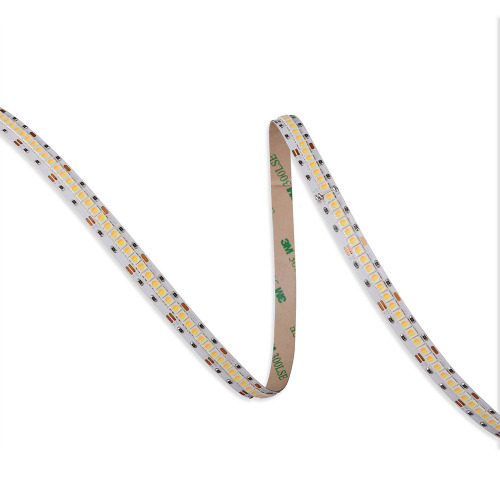

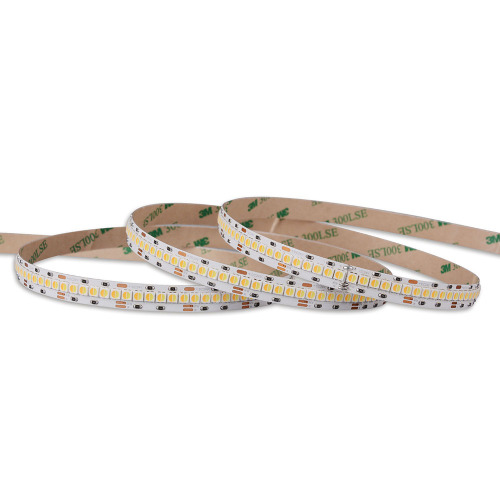

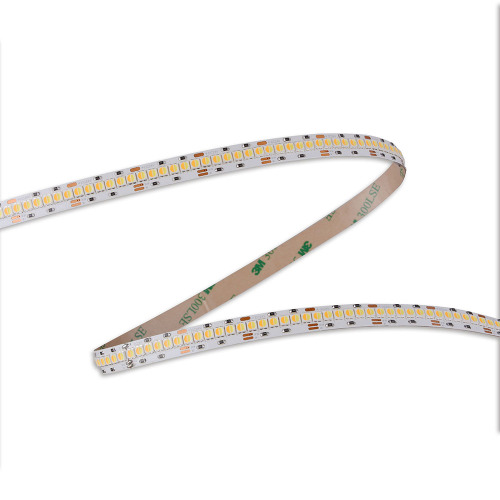

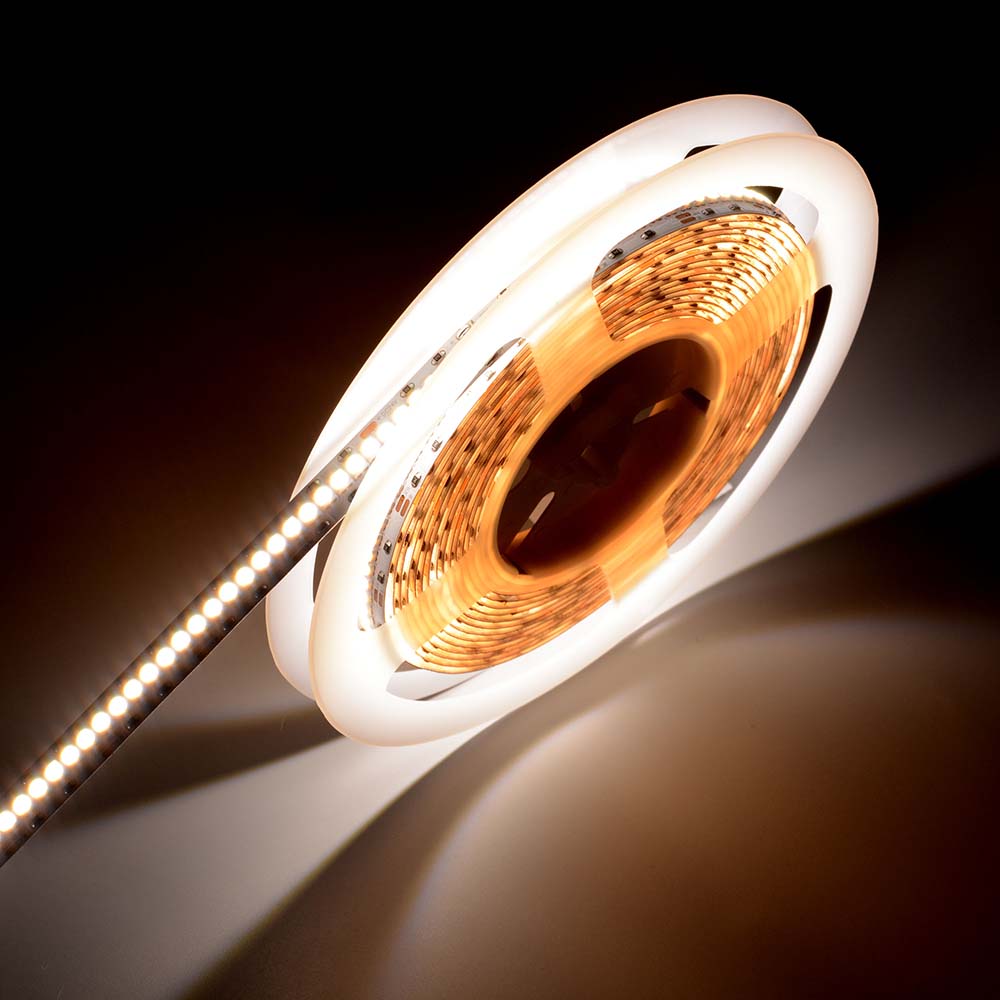

LUX CCT strip Features:
- 2700k-6500k adjustable, Ra>90, fast delivery in 1-2weeks.
- 2/3 OZ FPC, original high quality 3M 9495LE tape,with special design strong package. LED with LM-80 Test approval.
- Widely applied in commercial lighting, energy-saving and environment-friendly.
- Customized service available, customized MOQ>500M, 3 Years Warranty.
| Model | LED Type | LED Qty | Color | Work Voltage | Power | Cutting Unit | PCB Size |
| A3838-240-CCT-V24-NWP |
Two-in-one SMD3838 |
240 | 2700-6500K | 24V DC | 24W/M | 6 LEDs 25mm | 5000*10mm 3 OZ |
|
LED Type |
Two-in-one 3838 SMD |
Input Voltage |
24V DC |
|
|
Color |
2700-6500K |
Peak Power Per Meter |
24 w/m |
|
|
LED Density |
240 pcs/m |
Power Per Roll ( 5 meters) |
120 w/m |
|
|
Cuttable Segments |
6 LEDs / 25mm |
Lumen |
1150Lm |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
>80 |
|
|
PCB Width |
10 mm |
IP Grade |
IP20/IP54/IP65/IP67 |
|
|
Max Run Length |
5 m |
Warranty |
3 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE RoHS ERP |
| Model | LED Type | LED Qty | Color | Work Voltage | Power | Cutting Unit | PCB Size |
| A3528-120-CCT-V12-NWP-P8 | SMD3528 | 120 | Color Temperature Adjustable | 12V DC | 16W/M | 6 LEDs 50mm |
5000*8mm 2 OZ |
| A3528-120-CCT-V12-NWP-P10 | SMD3528 | 120 | Color Temperature Adjustable | 12V DC | 19.2W/M | 6 LEDs 50mm |
5000*10mm 2 OZ |
| A3838-60-CCT-V12-NWP |
Two-in-one SMD3838 |
60 | 2700-6500K | 12V DC | 10W/M | 6 LEDs 50mm |
5000*8mm 2 OZ |
| A3838-240-CCT-V24-NWP |
Two-in-one SMD3838 |
240 | 2700-6500K |
24 V DC | 24W/M | 6 LEDs 25mm |
5000*10mm 2 OZ |
