Description

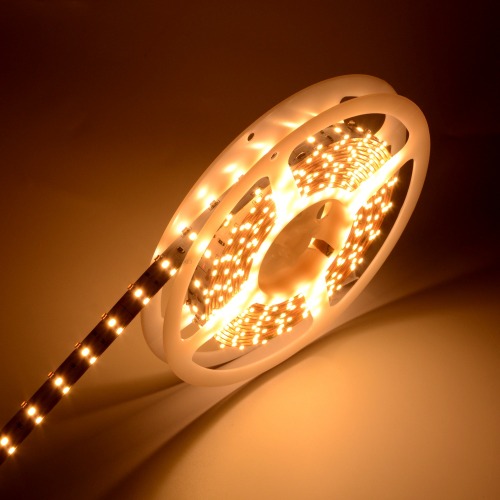

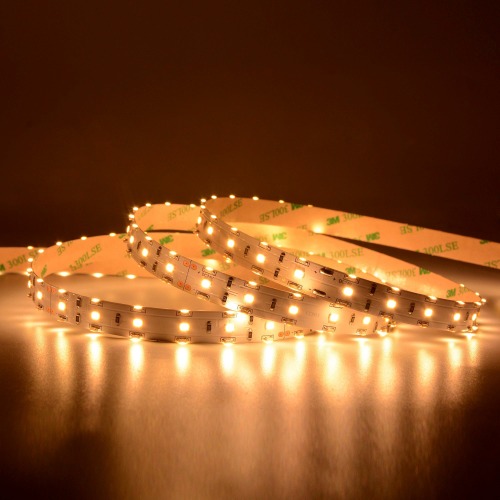

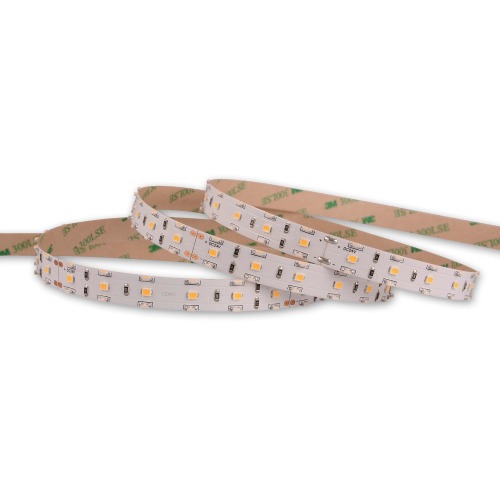

LUX Side View LED Strip Light Features:
- 300 Degree View LED Strip is a special functional led strip type for some projects because of It's side-glowing feature.

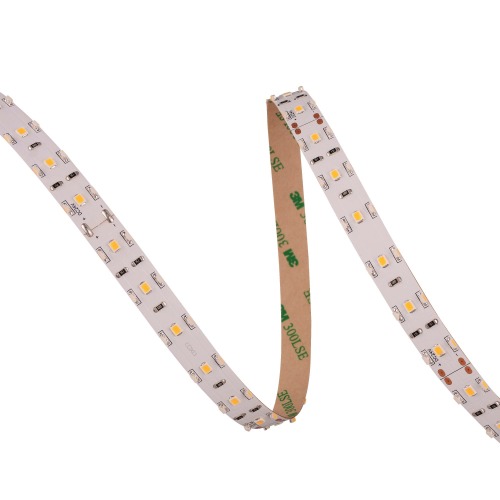

- 3014 Side View SMD with 2835 SMD, CRI>80, thick FPC ,original 3M Brand tape, and customized service available.
- It is widely used for commercial lighting.
- Customized service available, customized MOQ>500M.
| Model No | LED Density | Work Voltage | Power | Ra | CCT | Brightness | Cutting Unit |
PCB Size |
| V3014-T180-60K-V24-NWP | 180 led/m | 24V DC | 18.8 w/m | >80 | 6000K±300K | 1850 Lm/m | 18 Leds 100 mm | 5000*12mm 3 OZ |
| V3014-T180-40K-V24-NWP | 180 led/m | 24V DC | 18.8 w/m | >80 | 4000K±200K | 1850 Lm/m | ||
| V3014-T180-30K-V24-NWP | 180 led/m | 24V DC | 18.8 w/m | >80 | 3000K±100K | 1850 Lm/m |
|
LED Type |
3014V 2835 SMD |
Input Voltage |
24V DC |
|
|
LED Brightness |
9-11 Lm |
Peak Power (w/m) |
18.8 w/m |
|
|
LED Density |
180 pcs/m |
Measured Power (w/m) |
18.8 w/m |
|
|
Cuttable Segments |
18 Leds/100 mm (DC12V) |
Lumen (Lm/m) |
1850 Lm/m |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
80+ |
|
|
PCB Width |
12 mm |
IP Grade |
IP20/IP54/IP65/IP67/IP68 |
|
|
Max Run Length |
10 m |
Warranty |
3 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
Top-side view led strip is customized for special case or application requiring a wide angle.
| Model | LED Type |
LED Qty |
CCT | Work Voltage | Power | Lumen | Ra | Cutting Unit |
PCB Size |
| V3014-60-60K-V12-NWP | 3014 SMD EPISTAR | 60 | 6000K±300K | 12V DC | 4.8W/M | 430 Lm/m | >80 | 3 Leds 50 mm |
5000*8mm 2 OZ |
| V3014-60-40K-V12-NWP | 4000K±200K | ||||||||
| V3014-60-30K-V12-NWP | 3000K±100K | ||||||||
| V3014-120-60K-V12-NWP | 3014 SMD EPISTAR | 120 | 6000K±300K | 12V DC | 9.6W/M | 850 Lm/m | >80 | 3 Leds 25 mm |
5000*8mm 2 OZ |
| V3014-120-40K-V12-NWP | 4000K±200K | ||||||||
| V3014-120-30K-V12-NWP | 3000K±100K | ||||||||
| V3014-156-60K-V12-NWP | 3014 SMD EPISTAR | 156 | 6000K±300K | 12V DC | 12.5W/M | 1120 Lm/m | >80 | 3 Leds 19.2 mm |
5000*8mm 2 OZ |
| V3014-156-40K-V12-NWP | 4000K±200K | ||||||||
| V3014-156-30K-V12-NWP | 3000K±100K | ||||||||
| V3014-T180-60K-V24-NWP | 3014 V 2835 SMD | T180 | 6000K±300K | 24V DC | 18.8W/M | 1850 Lm | >80 | 18 Leds 100 mm |
5000*12mm 3 OZ |
| V3014-T180-40K-V24-NWP | 4000K±200K | ||||||||
| V3014-T180-30K-V24-NWP | 3000K±100K |
Adopt SMD 2835 & SMD 3014 side view as the light source.
- 24V DC, 18.8w/m
- 180leds/m, 1850lm/m
- 12mm width, 3oz PCB
3000k/4000k/6000k color temperate for choice, other customized colors are available, and SDCM<3.
- The maximum beam angle is 300 degree
- Use EPISTAR LED-long life span
- Good heat dissipation performance
- High CRI and high brightness
- Color temperature consistency
