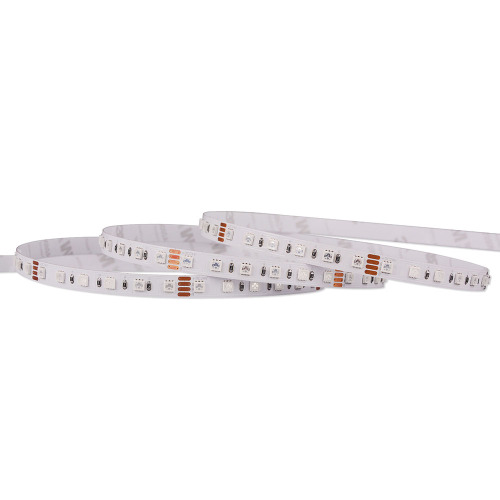

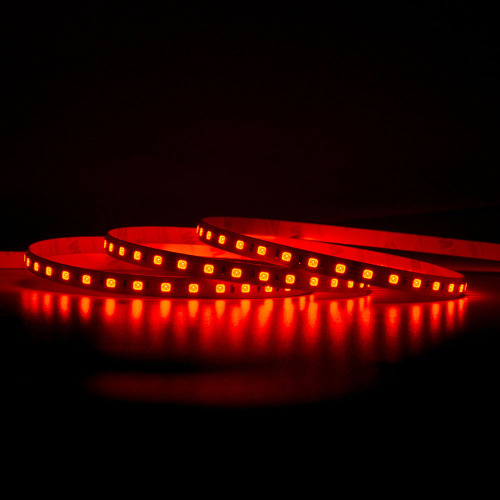

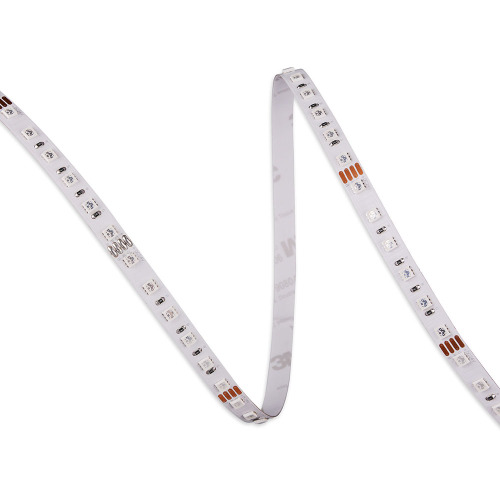

LUX- 3838 Strip Features:
- Smaller and thinner design led than 5050, 2400-2700MCD for each 3838 RGB , 48Lm-52Lm for each CCT 3838 LED.
- High density design for RGB and CCT LED Strip, max. 240 LEDs per meter, dot-free and high brightness working with slim profiles.
- Widely applied in commercial lighting, energy saving and environment friendly, high cost-effective performance.
- Customized service available, customized MOQ>1000M, 3 Years Warranty.
| Model | LED Type | LED Qty | Color | Work Voltage | Power | Cutting Unit | PCB Size |
| A3838-96-RGB-V24-NWP-P8 | SMD3838 | 96 | RGB | 24V DC | 14W/M | 6 LEDs 62.5mm | 5000*8mm 3 OZ |
  |
|
LED Type |
3838 SMD |
Input Voltage |
24V DC |
|
|
Color |
RGB |
Peak Power Per Meter |
14 w/m |
|
|
LED Density |
96 pcs/m |
Power Per Roll ( 5 meters) |
70 w/m |
|
|
Cuttable Segments |
6 LEDs / 62.5mm |
Lumen |
-- |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
-- |
|
|
PCB Width |
8 mm |
IP Grade |
IP20/IP54/IP65/IP67 |
|
|
Max Run Length |
5 m |
Warranty |
3 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE RoHS ERP |
| Model | LED Type | LED Qty | Color | Work Voltage | Power | Cutting Unit | PCB Size |
| A3838-96-RGB-V24-NWP-P8 | SMD3838 | 96 | RGB | 24V DC | 14W/M | 6 LEDs 62.5mm |
5000*8mm 3 OZ |
| A3838-120-RGB-V24-NWP-P8 | SMD3838 | 120 | RGB | 24V DC | 16W/M | 6 LEDs 50mm |
5000*8mm 3 OZ |
| A3838-240-RGB-V24-NWP | SMD3838 | 240 | RGB | 24V DC | 18W/M | 6 LEDs 25mm |
5000*12mm 3 OZ |
