Mini Strip

A2216-140-V24-R90-P4

Item No.: Mini 2216-140

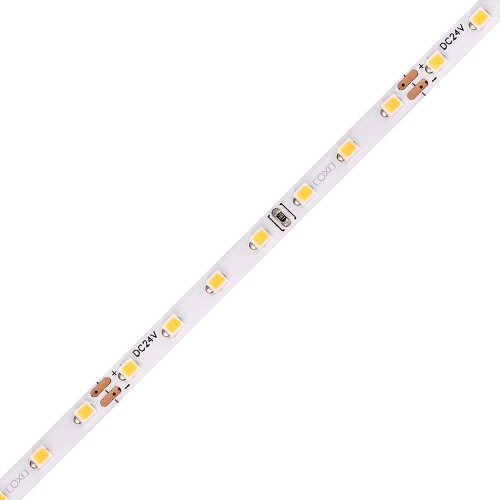

Flexible 2216 led strip,
COXO has lux pro series 2216 led strip, with high density strong reliability and high cri, ul ce rohs certification, 5-year warranty
  • LED Type2216
  • LED Density140
  • Input Voltage24V
  • Peak Power Per Meter9.6W
  • LED Brightness940-1000Lm
  • Ra90+
  • PCB Width4 MM
  • PCB Thickness2OZ
  • Cuttable Segments7 LEDs 50 mm
  • IP GradeIP20/IP54/IP65/IP67/IP68
  • CertificateCE/RoHS/UL/BIS/ERP
  • Warranty5 Years
  • More Less
    Description Review
    Description

    COXO LUX MINI 2116 LED Strip Features:

    • High CRI , Ra>90,  max 118Lm/W.
    • Small LED, High Density-Dot free light.
    • LED CHIP specially design for led strip-SMT high stability.
    • strips more flexibility and stronger reliability.
    • ustomized service available, customized MOQ>500M, 5 Years Warranty.

    Model LED Type LED Qty Color Work Voltage Power Lumen Ra Cutting Unit Size
    A2216-140-62K-V24-NWP-P4 2216 140pcs/m White 24V DC 9.6W/M 990 Lm >90 7 LEDs 50 mm 5000*4mm 2 OZ 2550 Slim Strip
    A2216-140-40K-V24-NWP-P4 Natural White 1000 Lm
    A2216-140-30K-V24-NWP-P4 Warm White 970 Lm
    A2216-140-27K-V24-NWP-P4 Warm White 940 Lm

      LED Type   2216 PCB Type/Color 2 OZ, white PCB
      Color 6200k/4000k/3000k/2700k PCB Width 4mm
      LED Density 140pcs/m Lumen 940-1000Lm
      Input Voltage      24V DC Reel Length 5m
      Peak Power Per Meter 9.6W/M Certifivation UL CE ROHS BIS ERP
      Ra >90 Warranty 5 years

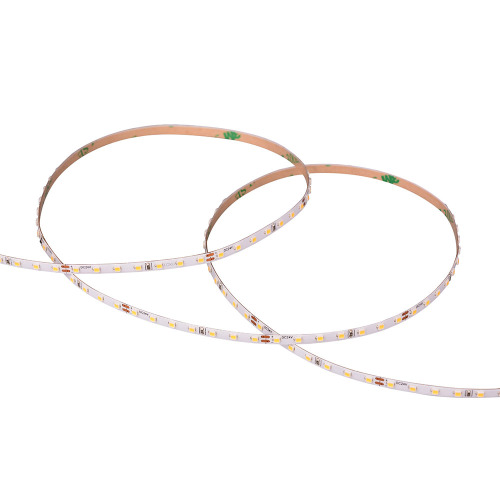

    2216 Flexible LED Strip

    • COXO has LUX & PRO series 2216 led strips, with high density, strong reliability and high Ra>90&95.

    • Small led, high density Dot-free light
    • Led Chip Specially Design for led strip SMT high stability strips more flexibility and stronger reliability

    Model LED Type LED Qty CCT Work Voltage Power Lumen Ra Cutting Unit Size
    A2216-140-V24-P4 2216 140pcs/m 2700K-6200K 24V DC 9.6W/M 940-1000Lm >90 7 LEDs 50 mm 5000*4mm 2 OZ 2550 Slim Strip
    A2216-240-V12-P6 2216 240pcs/m 2700K-6200K 12V/24V DC 14.4W/M 1380-1440Lm >90 3 LEDs 12.5 mm/ 6 LEDs 25 mm 5000*6mm 2 OZ 2550 Slim Strip
    A2216-280-V24-P5 2216 280pcs/m 2700K-6200K 24V DC 12W/M 1180-1280Lm >90 7 LEDs 25 mm 5000*5mm 2 OZ 2550 Slim Strip
    A2216-300-V12-P4 2216 300pcs/m 2700K-6200K 12V/24V DC 9.6W/M 940-1000Lm >90 3 LEDs 10 mm/ 6 LEDs 20 mm  5000*4mm 2 OZ 2550 Slim Strip
    A2216-350-V24-P4 2216 350pcs/m 2700K-6200K 24V DC 10.8W/M 1080-1150Lm >90 7 LEDs 20 mm

    5000*4mm

    2 OZ 2550 Slim Strip

    Parameters

    Spectrum Test Report

    Spectrum Test Report

    Application

    Package
