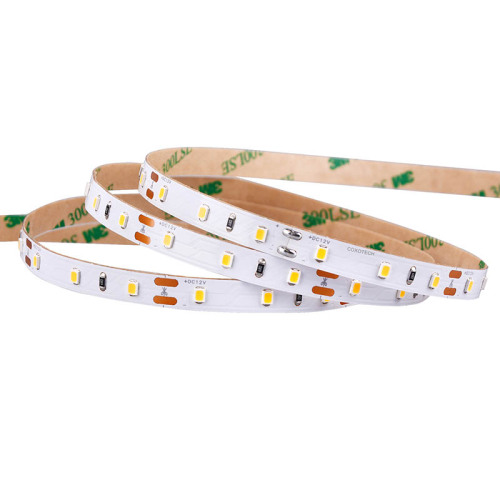

2835 Led Strip Features:
- COXO high CRI92 SMD2835 LED strip dramatically improve the appearance of objects.
- It brings us uniform and gentle light. With the features of good heat dispatch, long lifespan and low luminous decay.
- It supplys alternative color rendering solutions for commercial lighting, gallery lighting, advertising lighting , architectural decorative lighting and so on.
- 2/3 OZ FPC, original high quality 3M 9495LE tape, 3 or 6LEDS/cut, with special design strong package. LED with LM-80 Test approval.
- Customized service available, customized MOQ>500M, 5 Years Warranty.
| Model No | LED Density | Work Voltage | Power | Ra | CCT | Lumen |
| A2835-60-60K-V12-NWP | 60leds/m |
12V DC 24V DC |
10.8W/M | >92 | 6000K±300K | 950～1020Lm |
| A2835-60-40K-V12-NWP | 60leds/m | 10.8W/M | 4000K±200K | |||
| A2835-60-30K-V12-NWP | 60leds/m | 10.8W/M | 3000K±100K | |||
| A2835-60-27K-V12-NWP | 60leds/m | 10.8W/M | 2700K±100K | |||
| A2835-60-19K-V12-NWP | 60leds/m | 10.8W/M | / | 1900K±100K |
|
LED Type |
2835 SMD |
Input Voltage |
12V/24V DC |
|
|
LED Density |
60 pcs/m |
Peak Power (w/m) |
10.8 w/m |
|
|
Cuttable Segments |
3 LEDs 50mm (DC12V) |
Lumen (Lm/m) |
950～1020Lm |
|
|
PCB Type/Color |
2 oz, White PCB |
Ra |
92+ |
|
|
PCB Width |
8 mm |
IP Grade |
IP20/IP54/IP65/IP67/IP68 |
|
|
Max Run Length |
10 m |
Warranty |
5 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
| Model | LED Type | LED Qty | CCT | Work Voltage | Power | Lumen | Ra | Cutting Unit | Size |
| A2835-60-60K-V12-NWP |
SMD 2835 |
60leds/m | 6000K±300K |
12V DC 24V DC |
10.8W/M | 950～1020Lm | >92 |
3 LEDs 50mm 6 LEDs 100mm |
5000*8mm 2 OZ |
| A2835-60-40K-V12-NWP | 4000K±200K | ||||||||
| A2835-60-30K-V12-NWP | 3000K±100K | ||||||||
| A2835-60-27K-V12-NWP | 2700K±100K | ||||||||
| A2835-60-19K-V12-NWP | 1900K±100K | / | |||||||
| A2835-120-60K-V12-NWP |
SMD 2835 |
120leds/m | 6000K±300K |
12V DC 24V DC |
18W/M | 1650～1750Lm | >92 |
3 LEDs 25mm 6 LEDs 50mm |
5000*8mm 2 OZ |
| A2835-120-40K-V12-NWP | 4000K±200K | ||||||||
| A2835-120-30K-V12-NWP | 3000K±100K | ||||||||
| A2835-120-27K-V12-NWP | 2700K±100K | ||||||||
| A2835-120-19K-V12-NWP | 1900K±100K | / | |||||||
| A2835-168-60K-V24-NWP |
SMD
2835
|
168 |
6000K±300K |
24V DC | 20W/M |
2100～2220Lm |
>92 |
7 LEDs 41.6mm
|
5000*10mm
|
| A2835-168-40K-V24-NWP |
4000K±200K |
||||||||
| A2835-168-30K-V24-NWP |
3000K±100K |
||||||||
| A2835-168-27K-V24-NWP |
2700K±100K |
||||||||
| A2835-168-19K-V24-NWP |
1900K±100K |
/ | |||||||
| A2835-240-60K-V24-NWP |
SMD 2835
|
240leds/m |
6000K±300K |
12V DC 24V DC
|
24W/M |
2250～2380Lm |
>92 |
3 LEDs 12.5mm
6 LEDs 25mm
|
5000*10mm 3 OZ
|
| A2835-240-40K-V24-NWP |
4000K±200K |
||||||||
| A2835-240-30K-V24-NWP |
3000K±100K |
||||||||
| A2835-240-27K-V24-NWP |
2700K±100K |
||||||||
| A2835-240-19K-V24-NWP |
1900K±100K |
/ | |||||||
| A2835-D240-60K-V24-NWP |
SMD 2835
|
240 Double Lines |
6000K±300K |
DC24V
|
24W/M |
2250～2380Lm |
>92 |
6 LEDs
25mm
|
5000*15mm 3 OZ
|
| A2835-D240-40K-V24-NWP |
4000K±200K |
||||||||
| A2835-D240-30K-V24-NWP |
3000K±100K |
||||||||
| A2835-D240-27K-V24-NWP |
2700K±100K |
||||||||
| A2835-D240-19K-V24-NWP |
1900K±100K |
/ | |||||||
|
LUX series led strip features: 1.Ra>92, full range of color temperatures, 2/3 OZ FPC. 2.Original high quality 3M 9495LE tape, 3 or 6 LEDS/cut, with special design strong package. LED with LM-80 Test approval. 3.Widely application in commercial lighting, energy-saving and environment-friendly. 4.Customized service available, customized MOQ>500M, 5 years warranty. |
|||||||||
- Showcase lighting, warehouse, bathroom, living room, meeting room, etc.
