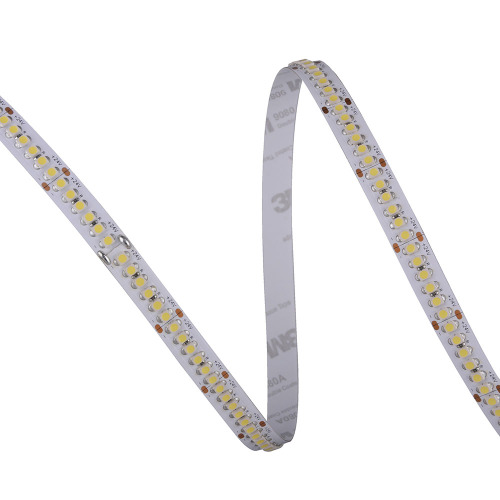

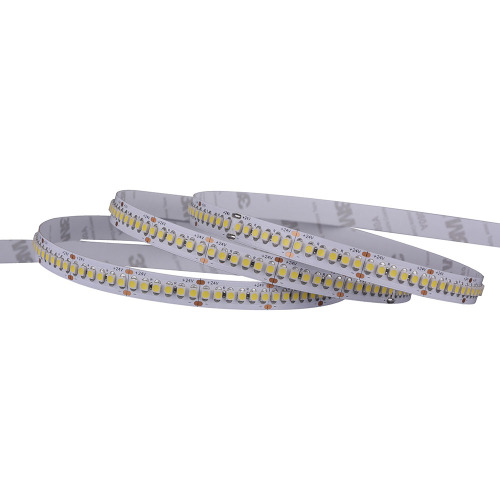

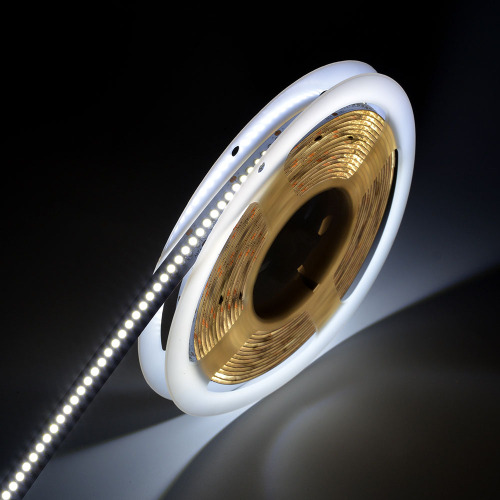

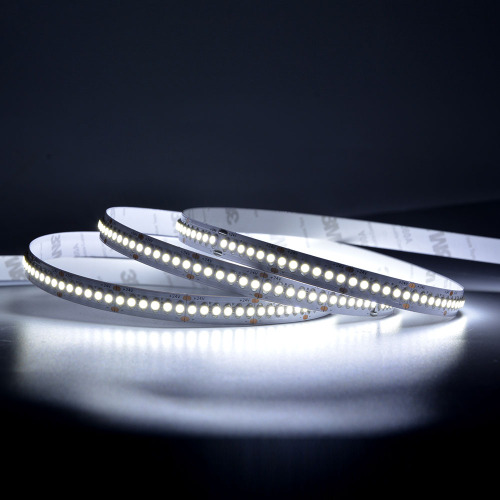

LUX SERIES 3528 Led Strip Features:
- Ra>90, full range of color temperatures, fast delivery in 1-2weeks.
- 2/3 OZ FPC, original high quality 3M 9495LE tape, 3 or 6LEDS/cut, with special design strong package. LED with LM-80 Test approval.
- Widely applied in commercial lighting, energy-saving and environment-friendly.
- Customized service available, customized MOQ>500M, 5 Years Warranty.
Model No | LED Density | Work Voltage | Power | Ra | CCT | Lumen | Cutting Unit |
A3528-240-60K-V24-NWP | 240 led/m |
12V DC 24V DC |
19.2 w/m | >80 | 6000K±300K | 1820Lm |
3 LEDs 12.5mm 6 LEDs 25mm |
A3528-240-40K-V24-NWP | 240 led/m | 19.2 w/m | 4000K±200K | 1800Lm | |||
A3528-240-30K-V24-NWP | 240 led/m | 19.2 w/m | 3000K±100K | 1680Lm |
LED Type |
3528 SMD |
Input Voltage |
12V/24V DC |
|
LED Brightness |
8-10 Lm |
Peak Power (w/m) |
20 w/m |
|
LED Density |
240 pcs/m |
Measured Power (w/m) |
19.2 w/m |
|
Cuttable Segments |
3 LEDs 12.5mm (DC12V) 6 LEDs/25 mm (DC24V) |
Lumen (Lm/m) |
1680-1820 Lm |
|
PCB Type/Color |
3 oz, White PCB |
Ra |
80+ |
|
PCB Width |
10 mm |
IP Grade |
IP20/IP54/IP65/IP67/IP68 |
|
Max Run Length |
10 m |
Warranty |
5 Years |
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
