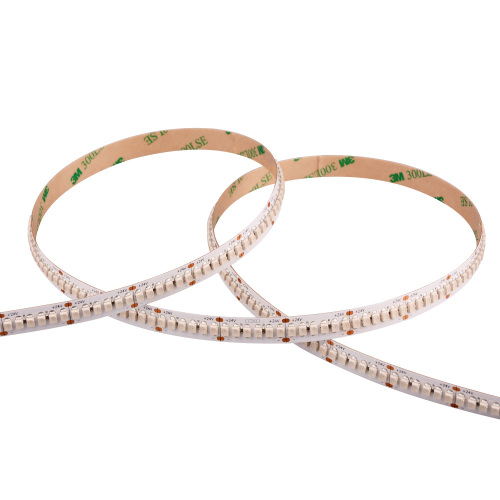

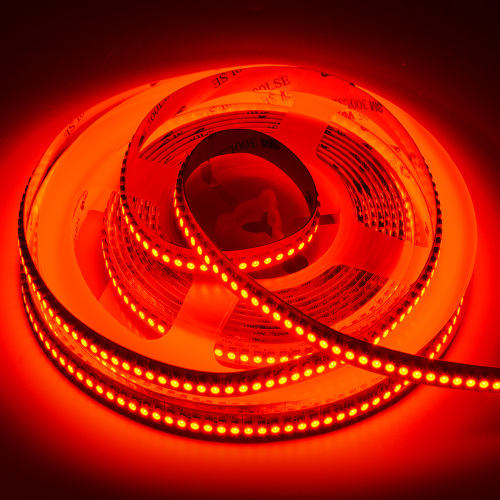

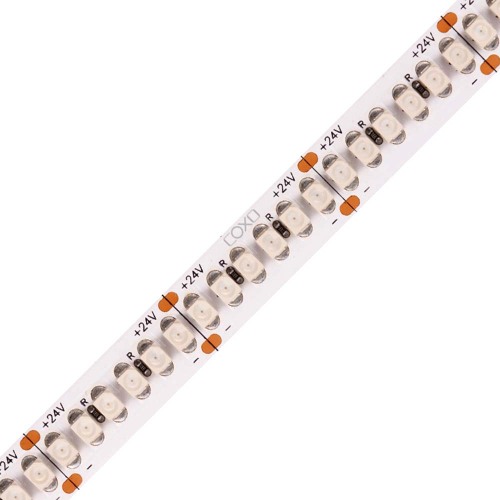

LUX Series LED Strip Features:
- LUX full range of colors, fast delivery in 1-2weeks.
- 2/3 OZ FPC, original high quality 3M 9495LE tape, 3 or 6LEDS/cut, with special design strong package. LED with LM-80 Test approval.
- Widely applied in commercial lighting, energy-saving and environment-friendly.
- Customized service available, customized MOQ>500M, 5 Years Warranty.
| Model | LED Type | LED Qty | Color | LED Brightness |
Work Voltage | Power | Cutting Unit | PCB Size |
| A3528-240-G-V24-NWP | SMD3528 | 240 | Green | 800-1000MCD | 24V DC | 19.2W/M | 6 LEDs 25mm | 5000*10mm 2 OZ |
| A3528-240-B-V24-NWP | Blue | 400-600MCD | ||||||
| A3528-240-R-V24-NWP | Red | 400-600MCD | ||||||
| A3528-240-P-V24-NWP | Pink | 400-600MCD | ||||||
| A3528-240-ICB-V24-NWP | ICE Blue | 800-1000MCD | ||||||
| A3528-240-V-V24-NWP | Violet | 100-200MCD | ||||||
| A3528-240-19K-V24-NWP | Golden Yellow | 6-7LM | ||||||
| A3528-240-Y-V24-NWP | Yellow | 300-500MCD | ||||||
| A3528-240-O-V24-NWP | Orange | 600-800MCD |
|
LED Type |
3528 SMD |
Input Voltage |
24V DC |
|
|
LED Density |
240 pcs/m |
Peak Power Per Meter |
19.2 w/m |
|
|
Cuttable Segments |
6 LEDs / 25mm |
Power Per Roll ( 5 meters) |
96 w/m |
|
|
PCB Type/Color |
2 oz, White PCB |
Ra |
>80 |
|
|
PCB Width |
10 mm |
IP Grade |
IP20/IP54/IP65/IP67 |
|
|
Max Run Length |
5 m |
Warranty |
5 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
