COB LED Strip

A5000-840-CCT-V24-R90-P10

Item No.: A5000-840-CCT

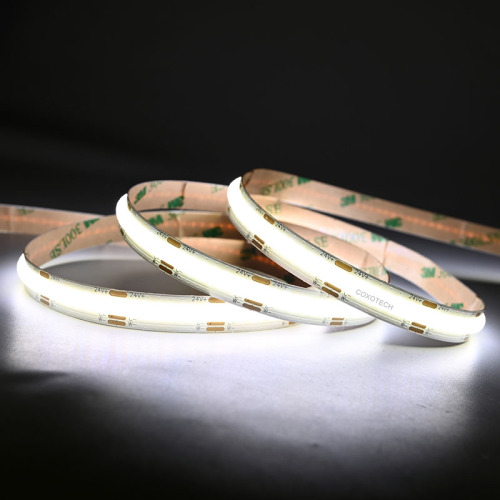

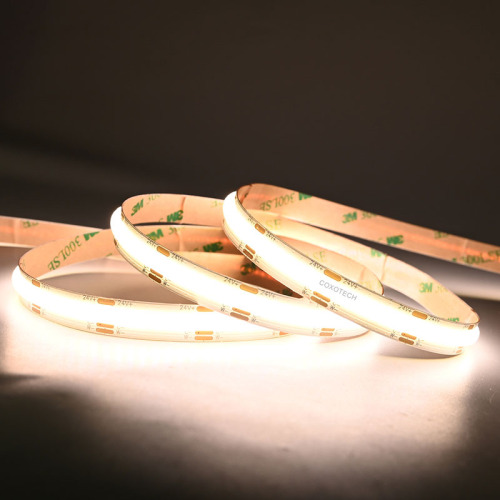

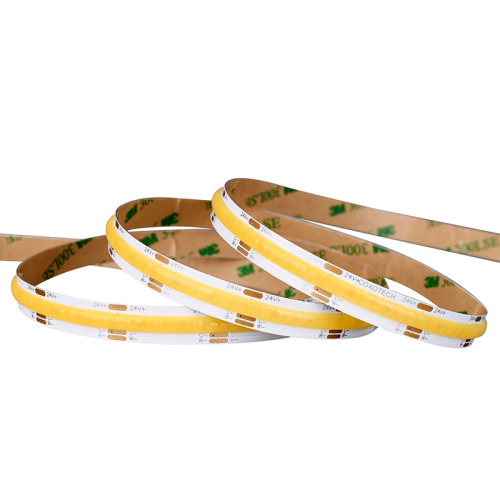

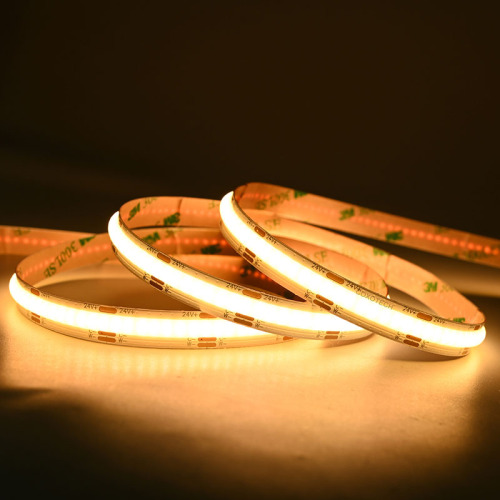

CCT COB LED Strip is characterized by adjustable color temperature, ranging from 2700K to 6500K. 50mm per cut, realizing color changing from warm white to cool white in one light.
Without light dot, with better heat dissipation and longer life span.
  • LED TypeCOB
  • LED Density840
  • Input Voltage24V DC
  • Peak Power Per Meter15W/M
  • LED Brightness1400Lm
  • Ra>90
  • PCB Width5000*10mm
  • PCB Thickness2 oz
  • Cuttable Segments50mm(24V)
  • IP GradeIP20/IP66/IP67/IP65/IP68S
  • CertificateUL/CE/ROHS/ERP
  • Warranty3 Years
  • More Less
    Description Review
    Description

     COB LED Strip Features:

    • New COB Packing technology in the flexible PCB.
    • Dot free without cover.
    • 50mm length short cut design.
    • 2 OZ  FPC, original high quality 3M 9495LE tape, with special design strong package. LED with LM-80 Test approval.
    • Energy-saving and environment-friendly.
    • Customized service available, customized MOQ>1000M, 3 Years Warranty.
    • IP Rating Option: IP20/IP66/IP67/IP65/IP68S.

    Model No LED Density    Color Cutting Unit Work Voltage PCB Size Peak Power
    A5000-840-CCT-V24-R90-NWP-P10 840 leds/m      2700-6500K 50mm 24V DC 5000*10mm*2oz 15 W/M



    LED Type

       COB



    Input Voltage

    24V DC

    Color

    2700-6500K Adjustable

    Peak Power Per Meter

    15 w/m

    LED Density

    840  pcs/m

    Power Per Roll ( 5 meters)

    75 w/roll

    Cuttable Segments

    50mm

    Lumen

    1400Lm

    PCB Type/Color

    2 oz, White PCB

    Ra

    >90

    PCB Width

    10 mm

    IP Grade

    IP20/IP66/IP67/IP65/IP68S

    Max Run Length

    5 m

    Warranty

    3 Years

    Reel Length

    5 m

    Certification

    UL CE  RoHS






    CCT COB LED Strip:

    1.CCT COB LED Strip is characterized by adjustable  color temperature, ranging from 2700K to 6500K.
    2.50mm per cut, realizing color changing from  warm white to cool white in one light.
    3.Without light dot, with better heat dissipation and longer life span with Chip on Board.
    4.Invisible resistors, making a clear appearance and good consistence.
    5.Higher flexibility with flip chips, can be made into various shapes.

    A5000-840-CCT-V24-R90-P10

      Basic Parameters
      Size   5000*10mm 2 oz (35/35)
      LED Type   COB
      LED Qty/M   840
      Input Voltage   24V DC
      Cutting Unit   50mm(24V)
      Input Current   0.625A/M
      Max Power/M   15W/M
      Bend Diameter   >60MM
      IP Grade   IP20/IP67/IP67S
      Photo-electric Parameters
      CRI   >90
      CCT   2700-6500k Adjustable
      LM/M   1400LM/M
      LM/W   95-100LM/W
      Energy Efficiency Class   F

    NEW TREND LINEAR LIGHT

                  ——COB LED STRIP

                             ——CHIP DIRECT ON FPC

    TECHNOLOGY REVOLUTION, REDEFINE LED STRIP INDUSTRY

    CHIP-ON-FPC

    • Without traditional led bracket, golden wire, cob led strip light is with better bending

    performance and more efficient heat transfer.

    • 1 chip not work, the section still works with better consistency.
    • Invisible resistors, clear appearance.

    FLEXIBLE

    • Flexible, slim for kinds of application
    • Easy installation
    • Bend the strips without breaking it
    • Ultra high density linear light, dot-free
    • 180°beam angle, high light efficiency

    FEATURES

    Mini Size

           We have slim design COB strip to fit narrow places, smallest 3mm width

    A5000-384-V12-P5 A5000-384-V12-P3

    Full range of choices

      Color   2200k,2700k,3000k,4000k,6000k,CCT,Red,Green,Blue,Yellow,RGB,Digital
      LEDs/M   320/336/384/400/512/528/576/864
      Power/M   5w/8w/9w/11w/12w/15w
      LM/M   600lm/700lm/900lm/1100lm/1500lm
      CRI   CRI80,CRI90,CRI95
      FPC Width   3mm/4.5mm/5mm/8mm/10mm/12mm
      Voltage   5V/12V/24V DC
      IP Grade   IP20,IP66,IP67,IP67S,IP68

    Full spectrum cob led strip



    Waterproof IP Grade

    IP20

    Non-waterproof

    IP66

    Slim shrink cover

    IP67 Tube

    IP67s

    Tube extrusion

    IP68

    Full silicon extrusion

    Led connectors for cob strip

    Package information

    Application
