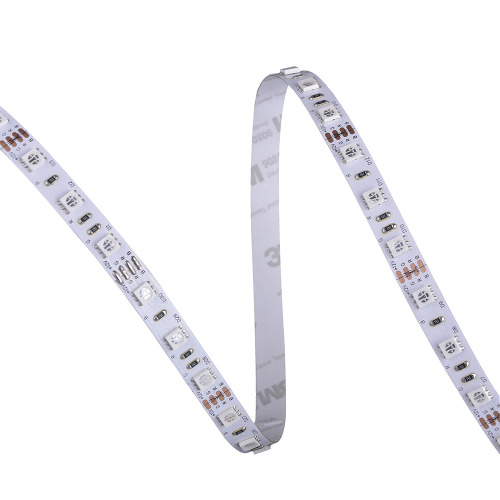

LUX RGB+X Series LED Strip Features:
- RGB, RGBW, RGBCCT, all types colorful led strips, millions of mixing colors working with led controllers.
- 2/3 OZ FPC, original high quality 3M 9495LE tape, with special design strong package. LED with LM-80 Test approval.
- Energy-saving and environment-friendly.
- Customized service available, customized MOQ>500M, 3 Years Warranty.
| Model | LED Type | LED Qty | Color | Work Voltage | Power | Cutting Unit | PCB Size |
| A5050-60-RGB-V12-NWP | 5050 RGB | 60 | RGB |
12V DC 24V DC |
14.4W/M |
3 LEDs 50mm 6 LEDs 100mm |
5000*10mm 2 OZ |
|
LED Type |
5050 RGB |
Input Voltage |
12V/24V DC |
|
|
Color |
RGB |
Peak Power Per Meter |
14.4 w/m |
|
|
LED Density |
60 pcs/m |
Power Per Roll ( 5 meters) |
72 w/m |
|
|
Cuttable Segments |
3 LEDs 50mm(12V) 6 LEDs 100mm(24V) |
LED Brightness |
2200-2600MCD |
|
|
PCB Type/Color |
2 oz, White PCB |
Ra |
-- |
|
|
PCB Width |
10 mm |
IP Grade |
IP20/IP54/IP65/IP67 |
|
|
Max Run Length |
5 m |
Warranty |
3 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
RGB mixed white color = Pure White
- Pro Epistar RGB
- Pro LUX Epistar RGB
- Pro Cree RGB
| Mode | LED Type | LED Qty | Color | Work Voltage | Power | LED Brightness | Cutting Unit | Size | Ra |
| A5050-60-RGB-V12-NWP | 5050 RGB | 60 | RGB |
12V DC 24V DC |
14.4W/M | 2200-2600MCD |
3 LEDs 50mm 6 LEDs 100mm |
5000*10mm 2 OZ |
/ |
| A5050-84-RGB-V12-NWP | 5050 RGB | 84 | RGB |
12V DC 24V DC |
15W/M | 2200-2600MCD |
3 LEDs 35.7mm 6 LEDs 71.5mm |
5000*10mm 2 OZ |
/ |
| A5050-30-RGB-V12-NWP | 5050 RGB | 30 | RGB |
12V DC 24V DC |
7.2W/M | 2200-2600MCD |
3 LEDs 100mm 5 LEDs 167mm |
5000*10mm 2 OZ |
/ |
| A4040-120-RGB-V24-NWP-P6 |
SMD 4040 |
120 | RGB |
24V DC |
12W/M | / |
6 LEDs 50mm |
5000*6mm 3 OZ |
/ |
| A4040-120-RGB-V24-NWP-P8 |
SMD 4040 |
120 | RGB |
24V DC |
16W/M | / |
6 LEDs 50mm |
5000*8mm 3 OZ |
/ |
| A4040-120-RGB-V24-NWP-P10 |
SMD 4040 |
120 | RGB |
24V DC |
16W/M | / |
6 LEDs 50mm |
5000*10mm 3 OZ |
/ |
| P5050-60-RGB-V12-NWP | 5050 RGB |
60 |
EPISTAR RGB |
12V DC 24V DC |
14.4W/M | 2200-2600MCD |
3 LEDs 50mm 6 LEDs 100mm |
5000*10mm 3 OZ |
/ |
| PH5050-60-RGB-V12-NWP | 5050 RGB |
60 |
TOP EPISTAR RGB |
12V DC 24V DC |
14.4W/M | 2400-2800MCD |
3 LEDs 50mm 6 LEDs 100mm |
5000*10mm 3 OZ |
/ |
