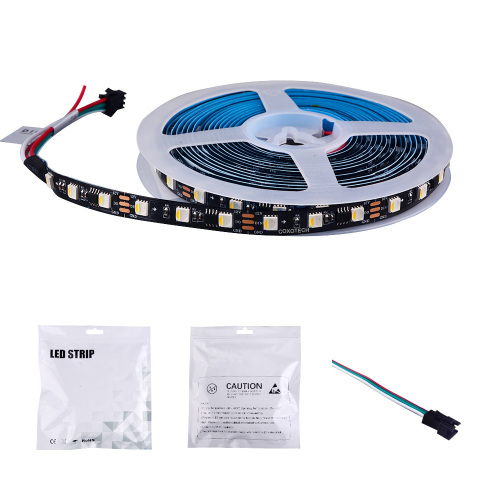

B1814-60-RGBW-V12-R80-P10

Item No.: B1814-60
DIGITAL LED Strip Features:
1.SPI/Digital/Magic LED Strip, Addressable, full color, programmable.
2.Widely applied in decoration lighting projects, high cost-effective performance.
3.Customized service available, Customized MOQ>1000M, 2 Years Warranty.
  • LED Type1814
  • LED Density60leds/m
  • Input Voltage12V DC/24V DC
  • Peak Power Per Meter19.2W/M
  • LED Brightness2000-2400MCD + 7-9Lm
  • Ra>80
  • PCB Width5000*10mm
  • PCB Thickness2 OZ
  • Cuttable Segments3 LEDs 50mm/6 LEDs 100mm
  • IP GradeIP20
  • CertificateUL/CE/BIS/ROHS
  • Warranty2 Years
  • More Less
    Description Review
    Description

    1814 LED Strip Features:

    1.SPI/Digital/Magic LED Strip ,Addressable, full color, programmable.

    2.Widely applied in decoration lighting projects, high cost-effective performance.

    3.Has pure white color, and thousands of more mixed colors.

    4.More stable, more power supply options.

    5.More dynamic.

    Model No LED Density Pixel Qty Work Voltage Power Color Minimum cut length
    B1814-60-RGB60K-V12-NWP  60leds/m

    12V 20

    24V 10

    12V/24V DC

    19.2W/M
    RGB+6000K

    3 LEDs 50mm

    6 LEDs 100mm

    B1814-60-RGB40K-V12-NWP
    60leds/m
    RGB+4000K
    B1814-60-RGB30K-V12-NWP
    60leds/m
    RGB+3000K

      LED Type 1814       Input Voltage 12V/24V DC
      LED Density 60 led/m       Power 19.2W/M
      Cuttable Segments

    3 LEDs 50mm

    6 LEDs 100mm

      Color RGB+6000K/4000K/3000K
      PCB Thickness  2 OZ        Warranty 2 Years
      PCB Width 10mm        Certification UL CE  RoHS BIS
      Reel Length 5 m        Ra >80

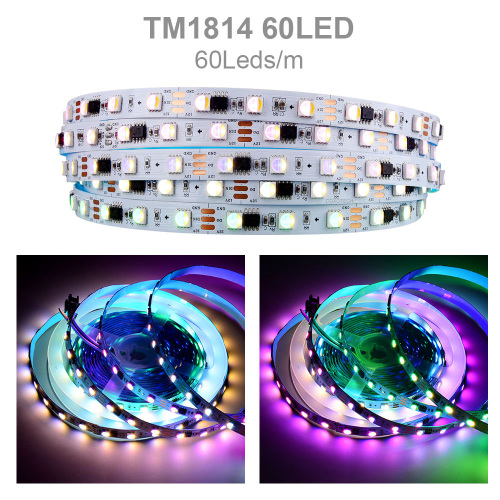

    Addressable RGBW 4 in 1 Digital Led Strip

    ——5050 TM1814 DC 12/24V

    Product Features

    12V led strip, 1IC for 3 LEDS

    24V led strip, 1IC for 6 LEDS

    Cuttable

    You can cut at the cutting point.

    The strip works well after cutting.

    3M tape on the back of PCB

    Dimension

    Product Wiring Diagram

                     End Of The Led Strip With 3Pin Connector

    END TO END CONNECT

    • End to End connect
    • DC 12V Voltage-Adding.It is Better to Add DC 12V Voltage Every 16.4ft or 300LEDs, Because the LEDs at the Far End of the Strip Might Be Dimmer.
    Application
