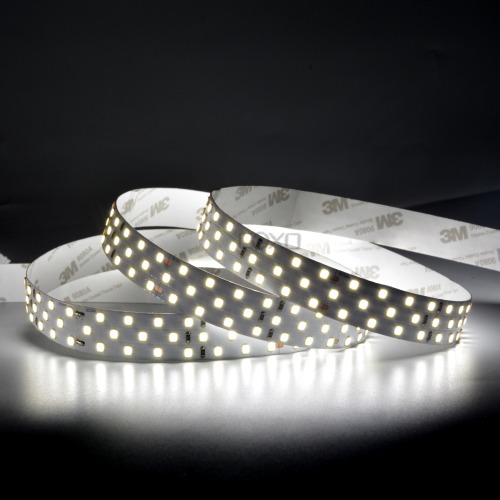

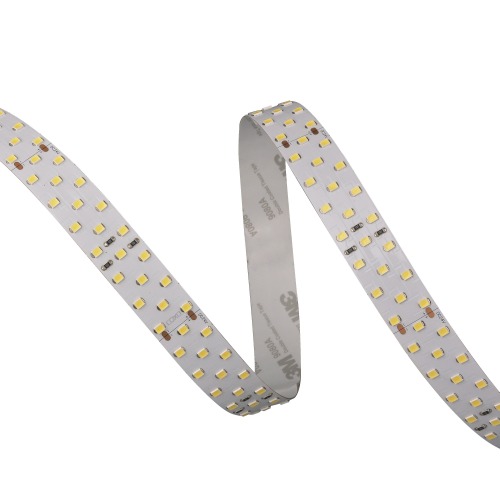

LUX High Efficiency E2835 Led Strip Features:
-
Efficiency>110-125LM/W, Max. 4600LM/M, with high Ra>92.
-
3 OZ FPC, original high quality 3M 9495LE tape, 7LEDS/cut, with special design strong package. LED with LM-80 Test approval.
-
Widely applied in commercial lighting, energy-saving and environment-friendly.
-
Customized service available, customized MOQ>1000M, 5 Years Warranty.
| Model No | LED Density | Work Voltage |
Power | Ra | CCT | Brightness | Cutting Unit |
Size |
| E2835-T252-60K-V24-NWP |
252 Three Lines |
24V DC | 30 w/m | >92 | 6000K±300K | 3300-3750Lm | 21 LEDs 83.3mm |
5000*19mm 3 OZ |
| E2835-T252-40K-V24-NWP | 24V DC | 30 w/m | 4000K±200K | |||||
| E2835-T252-30K-V24-NWP | 24V DC | 30 w/m | 3000K±100K | |||||
| E2835-T252-27K-V24-NWP | 24V DC | 30 w/m | 2700K±100K |
|
LED Type |
2835 SMD |
Input Voltage |
24V DC |
|
|
LED Brightness |
22-26 Lm |
Peak Power (w/m) |
30 w/m |
|
|
LED Density |
Three Lines, 252 pcs/m |
Measured Power (w/m) |
30 w/m |
|
|
Cuttable Segments |
21 Leds/83.3 mm (DC24V) |
Lumen (Lm/m) |
3300-3750 Lm/m |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
92+ |
|
|
PCB Width |
19 mm |
IP Grade |
IP20/IP54 |
|
|
Max Run Length |
10 m |
Warranty |
5 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
- With super brightness at 150 Lumen/W
- Max 6000LM/Meter
