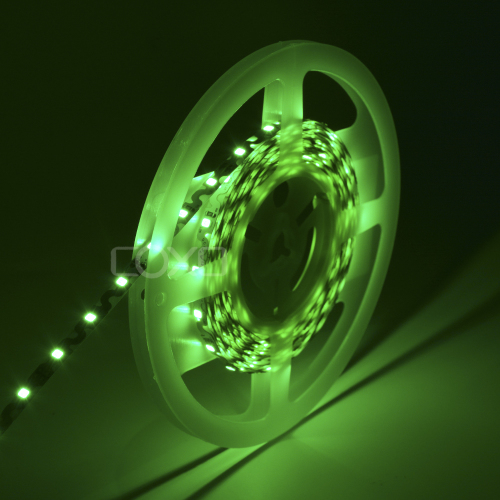

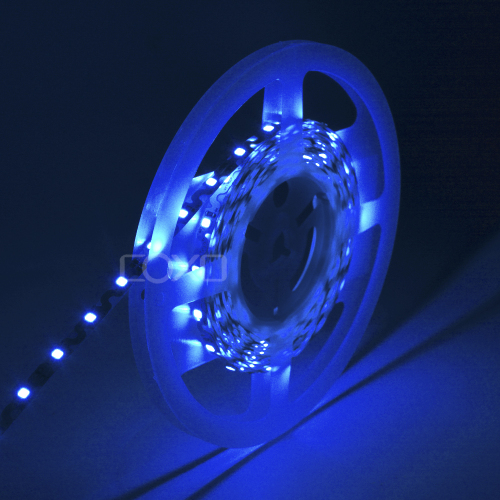

LUX S-Type LED Strip Features:
- Adopting Super bright SMD 2835 LED ,Full Color available. Easy to bend any angle.
- Original 3M Brand tape, nice design package. LED with LM-80 Test approval.
- Flexible enough to be used in small size channel letters.
- UL CE Certification, 3 Years Warranty.
| Model No | LED Density |
Work Voltage |
Power | Color | CCT | Ra |
Brightness |
| F2835-72-90K-V12-NWP | 72 led/m | 12V DC | 7.2 w/m | Cool White | 9000K | >90 |
660 Lm / m |
| F2835-72-60K-V12-NWP | White | 6000K | |||||
| F2835-72-40K-V12-NWP | Natural White | 4000K | |||||
| F2835-72-30K-V12-NWP | Warm White | 3000K | |||||
| F2835-72-R-V12-NWP | Red | 620-625nm | / | ||||
| F2835-72-G-V12-NWP | Green | 520-525nm | / | ||||
| F2835-72-B-V12-NWP | Blue | 460-465nm | / | ||||
| F2835-72-19K-V12-NWP | Yellow | 1900K | / | ||||
| F2835-72-P-V12-NWP | Pink | / | / |
|
LED Type |
2835 SMD |
Input Voltage |
12V DC |
|
|
LED Brightness |
22-26 Lm |
Peak Power (w/m) |
8 w/m |
|
|
LED Density |
72 pcs/m |
Measured Power (w/m) |
7.2 w/m |
|
|
Cuttable Segments |
3 Leds/41.67 mm (DC12V) |
Lumen (Lm/m) |
660 Lm |
|
|
PCB Type/Color |
2 oz, White PCB |
Ra |
90+ |
|
|
PCB Width |
6 mm |
IP Grade |
IP20 |
|
|
Max Run Length |
10 m |
Warranty |
3 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE RoHS |
