Home > COB LED Strip Connector > H Series COB Strip Connec...
H-B2P-5
H-B2P-5 H-B2P-5 H-B2P-5 H-B2P-5

H-B2P-5

Item No.: 00932

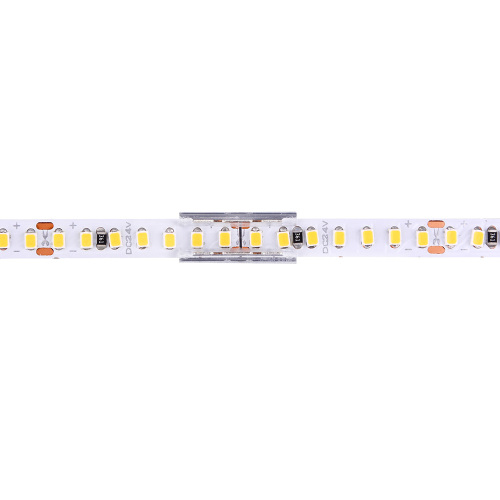

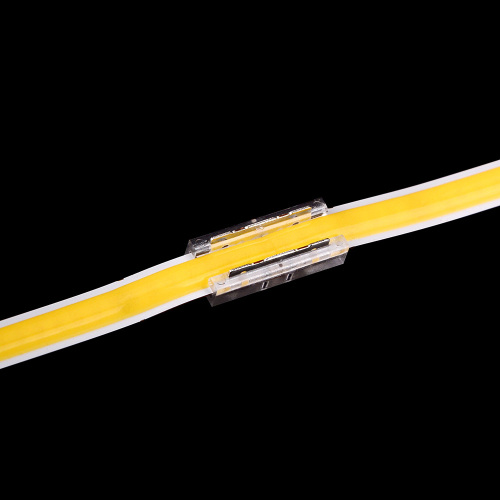

Transparent PC connector for high density (240led strip) and COB strip
2 Pin, 5mm, IP20
Strip to strip without soldering
0-36V, 5A
Request Quote PDF Format
Description Review
Description
  • H Transparent Connector  for COB and High Density Strip
  • Solderless
  • Seamless connection, continuous light
  • 100% transparent, no shade, keeping original color temperature

Item No. Application Description
H-B2P-5 Strip-To-Strip Transparent PC connector for high density(240led strip) and COB strip
2 Pin, 5mm, IP20
Strip to strip without soldering
0-36V, 5A
H-A2P-5 Strip-To-Power Transparent PC connector for high density(240led strip) and COB strip
2 Pin, 5mm, IP20, 1 head
Strip to wire without soldering, 15CM naked 20AWG wire
0-36V, 5A
H-A2T-2P-5 Strip-To-Strip Transparent PC connector for high density(240led strip) and COB strip
 2 Pin, 5mm, IP20, 2 heads
Strip to wire without soldering, 15CM naked 20AWG wire
0-36V, 5A

Solder Free COB Strip Connectors -- Invisible



5mm

8/10mm

CCT 10/12mm

RGB 10/12mm

Not need soldering, press directly, transparent, no dark area.

Slim size, put into the aluminum channels.

Zero shadow, light as invisible.

Product Details
  • Tin-plated copper
  • Contact points
  • Groove for LED strip
  • Lock

Top View

Back

How to connect strip to strip

1.push strip through the gap

2.Make both edges meet at middle line of connector

3.Clamp both conductor for piercing PCB one by one
4. Connection completed

Caution

1. The high temperature and humidity environment will cause the product to change color. It is recommended to be stored in environment with temperature and humidity management.

2. Please use the product within 6 months after leaving factory, the warranty period is 1 year.

3. The raw materials of the connector will absorb moisture. If the temperature changes sharply in the hygroscopic state, the color of the shell may shift. It is recommended to store in ventilated and dry environment and avoid sunlight.
