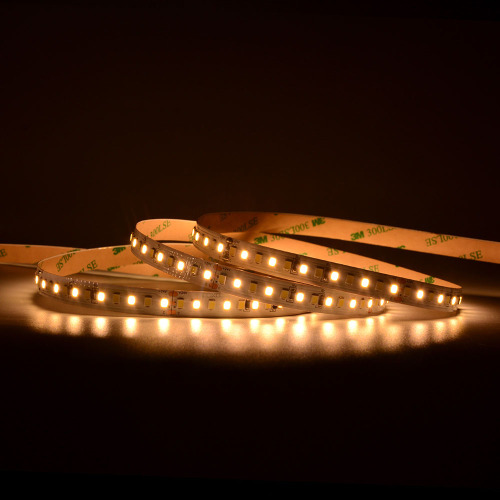

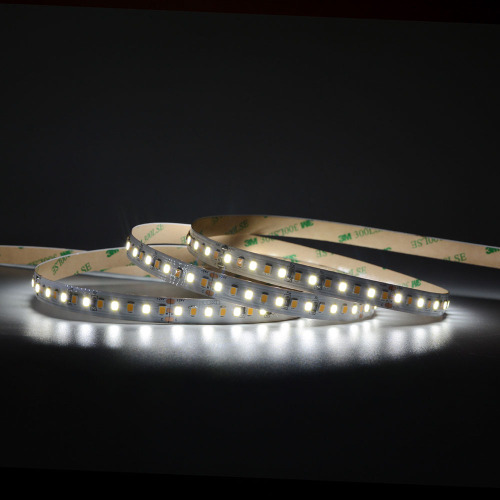

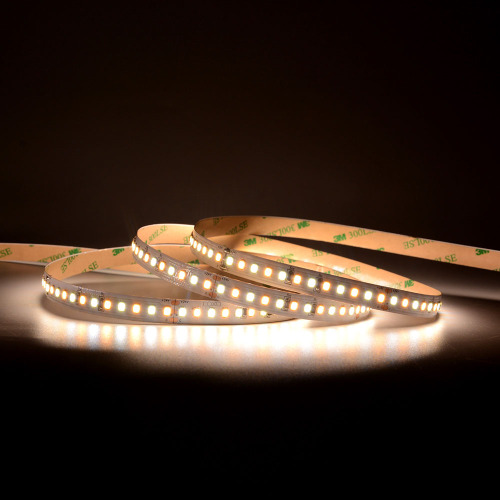

CC Ultra Length RGB LED Strip:
- Made by Top2835 LEDs with latest technology;
- With External Constant Current IC ;
- Max. working length up to 20M by one end powered;
- Thick 3 OZ/4 OZ FPC ,original 3M Brand tape, nice design package. LED with LM-80 Test approval;
- Widely applied in commercial lighting, high cost-effective performance;
- 5 Years Warranty.
| Model No | LED Density | Work Voltage | Power | Color | CCT | PCB Size |
| HL2835-168-CCT-V24-NWP | 168 led/m | 24V DC | 10 w/m | CCT Bicolor | 2700-6500K adjustable | 15000*10mm 3 OZ |
|
LED Type |
2835 |
Input Voltage |
24V DC |
|
|
Color |
2700-6500K adjustable |
Peak Power Per Meter |
10 w/m |
|
|
LED Density |
168 pcs/m |
Power Per Roll |
150 w/roll |
|
|
Cuttable Segments50 |
50mm (6 LEDs) |
Lumen |
1050Lm/m |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
90+ |
|
|
PCB Width |
10 mm |
IP Grade |
IP20/IP54/IP67 |
|
|
Max Run Length |
15000 mm |
Warranty |
5 Years |
|
|
Reel Length |
15000 mm |
Certification |
UL CE RoHS BIS |
- 20 meter by one end powered
- Head Brightness = End Brightness, only 5% difference
- CV Strip Special design and 6oz think FPC reduce voltage drop.
- CC Strip without resistance, internal IC consistent the current.
| Model | LED Type |
LED Qty | CCT | Work Voltage |
Power | Lumen | Ra | Cutting Unit |
Size |
| L2835-60-65K-V24-NWP | SMD 2835 |
60 | 6500K±400K | 24V DC | 4.8W/M | 460Lm | >90 | 6 LEDs 100mm |
20000*10mm 3 OZ |
| L2835-60-40K-V24-NWP | 4000K±200K | ||||||||
| L2835-60-30K-V24-NWP | 3000K±100K | ||||||||
| L2835-60-27K-V24-NWP | 2700K±100K | ||||||||
| L2835-120-65K-V24-NWP | SMD 2835 |
120 | 6500K±400K | 24V DC | 10W/M | 980Lm | >90 | 6 LEDs 50mm |
20000*10mm 3 OZ |
| L2835-120-40K-V24-NWP | 4000K±200K | ||||||||
| L2835-120-30K-V24-NWP | 3000K±100K | ||||||||
| L2835-120-27K-V24-NWP | 2700K±100K | ||||||||
| L2835-D168-65K-V24-NWP | SMD 2835 |
168 Double Lines | 6500K±400K | 24V DC | 14W/M | 1350Lm | >90 | 6 LEDs 35.7mm | 20000*15mm 3 OZ |
| L2835-D168-40K-V24-NWP | 4000K±200K | ||||||||
| L2835-D168-30K-V24-NWP | 3000K±100K | ||||||||
| L2835-D168-27K-V24-NWP | 2700K±100K | ||||||||
| HL2835-120-60K-V24-NWP |
SMD 2835 |
120 | 6000K±300K |
24V DC | 10W/M |
820Lm | >90 | 10 LEDs 83.3mm |
20000*10mm 3 OZ |
| HL2835-120-40K-V24-NWP |
4000K±200K |
||||||||
| HL2835-120-30K-V24-NWP |
3000K±100K |
||||||||
| HL2835-120-27K-V24-NWP |
2700K±100K |
