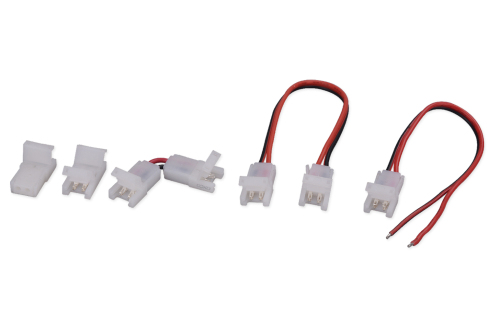

Connector for 10mm Width Single Color LED Strip
1. StableLockTM design, Firm connection, Pull value >30N
2. UL Listed 2468/1007 Wire, AWG20
3. Max current =5A
4. Top quality material: PA66, UL94-V0 high quality plastic and High purity copper with silver
5. Easy to install, mini design for aluminum
| Item No. |
Application |
Description | MOQ/Package |

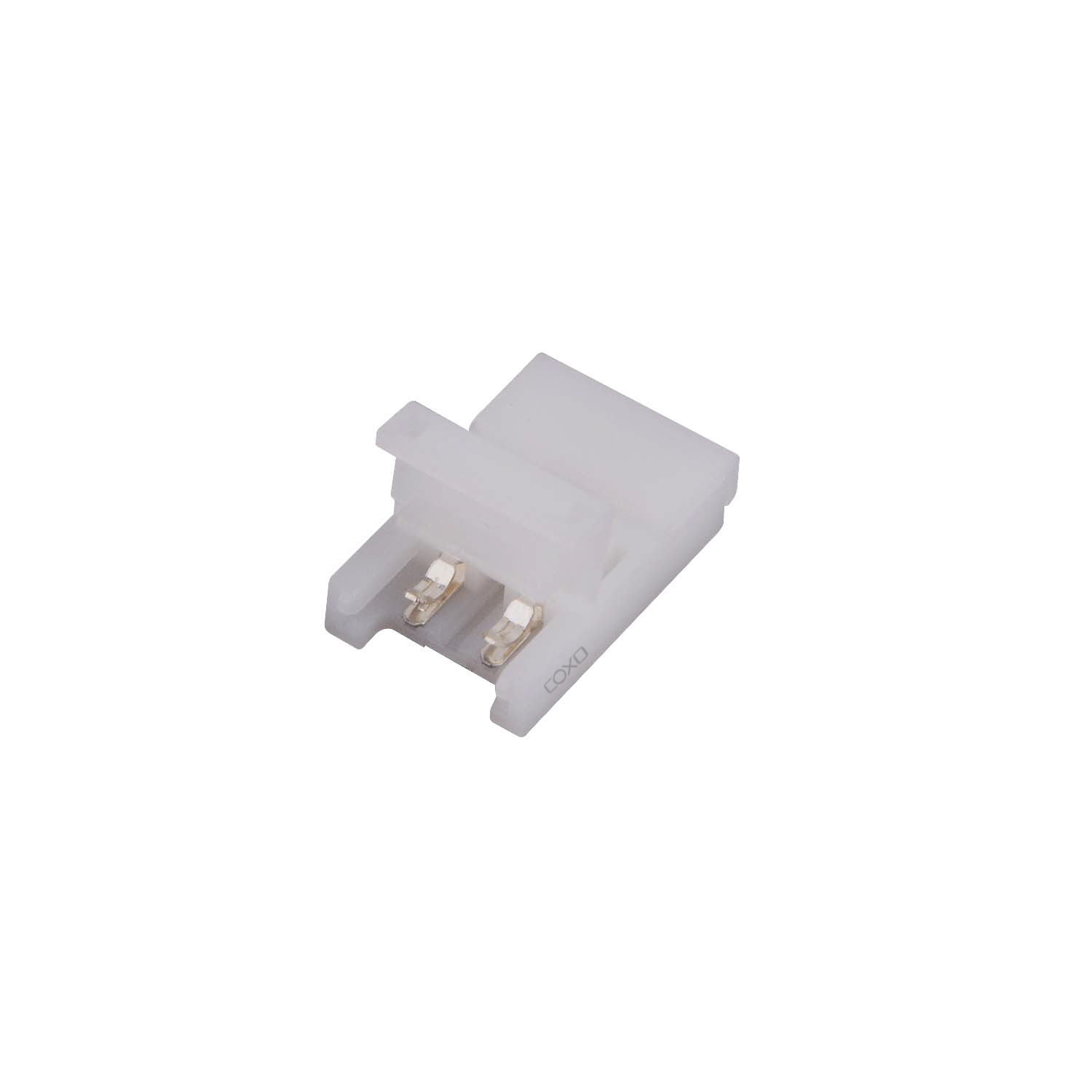

| S2P-10 | Strip-To-Strip | Used on 10mm width strip, Single Color strip, Connect strip to strip . Work Voltage: DC3-30V Max Current: 5A Pull : >30N Size: 21*10.5*5.3mm |
1000 pcs/bag |
| S2P-10W | Wire-To-Strip | Used on 10mm width strip, Single Color strip, Connect wire to strip, used for AWG22-20# wire Work Voltage: DC3-30V Max Current: 5A Pull : >30N Size: 21*10.5*5.3mm |
1000 pcs/bag |
| K2P-10 | Power-To-Strip | Used on 10mm width strip, Single Color strip, Connect strip to driver, UL2468 AWG20 Work Voltage: DC3-30V Max Current: 5A Pull : >30N Size: 160*10.5*5.3mm |
100 pcs/bag |
| K2T-2P-10 | Strip-To-Strip | Used on 10mm width strip, Single Color strip, Connect strip to strip, UL2468 AWG20 Work Voltage: DC3-30V Max Current: 5A Pull : >30N Size: 170*10.5*5.3mm |
100 pcs/bag |

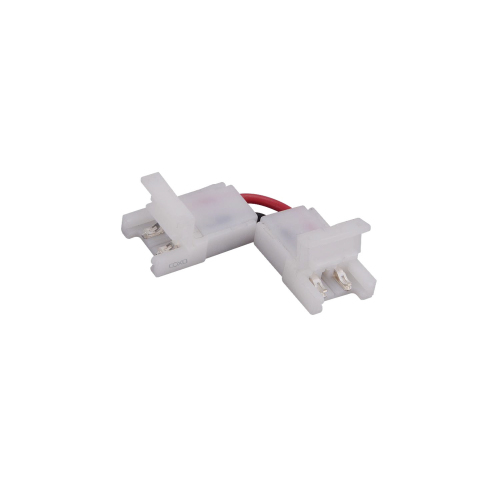

| K2L-2P-10 | Strip-To-Strip | Used on 10mm width strip, Single Color strip, 90 degree connect strip to strip, UL2468 AWG20 wire Work Voltage: DC3-30V Max Current: 5A Pull : >30N Size: 35*10.5*5.3mm |
100 pcs/bag |
Pull value >30N
8/10mm for single color, 10mm for RGB
Strong pull value
Special double side PIN design, make it more stable, pull value over 30N.
Strong current capacity
Adopts silver plated pure copper material touch point, max current can be 5A.
Mini size fit for profile
Clip lock from front face to save space and make it smaller which can put into aluminum profile.
Suitable for high density led strip
Also apply to 120 LED/M high density strip and doesn’t block luminous surface.
Strip-to-strip
Apply to <=120 leds/m led strip
Power-to-strip
Wire length = 150mm
Wire-to-strip
wire side once locked, can’t open again.
