Description

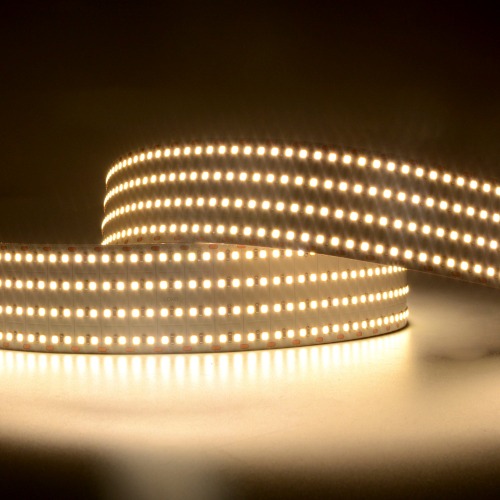

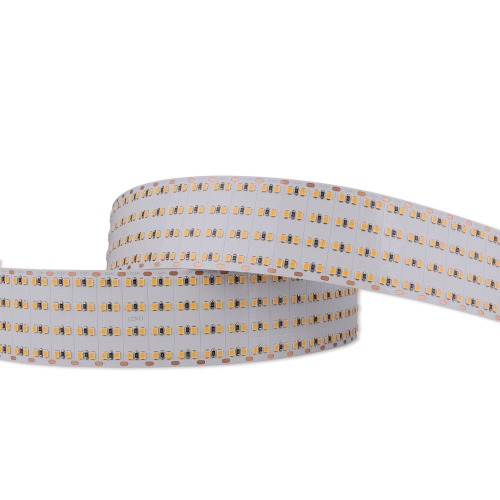

LUX MINI CUT Led Strip Features:
- Mini cut, short cut, this series strips work with aluminum profiles with more precise sizes, reducing the shadow for linear lights.
- M series is Epistar led and VM series is Sanan led.
- Ra>80/90, full range of color temperatures.
- 3 OZ FPC, original high quality 3M 9495LE tape, with special design strong package. LED with LM-80 Test approval.
- Widely applied in commercial lighting, energy-saving and environment-friendly.
- Customized service available, customized MOQ>500M, 3 Years Warranty.
| Model No | LED Density | Work Voltage | Power | Ra | CCT | Brightness | Cutting Unit |
PCB Size |
| M2835-F640-60K-V24-NWP-P48 |
640 Four Lines |
24V DC | 40w/m | >90 | 6000K±300K | 3800 Lm | 8 LED 12.5 mm |
3 OZ |
| M2835-F640-40K-V24-NWP-P48 | 24V DC | 40 w/m | 4000K±200K | |||||
| M2835-F640-30K-V24-NWP-P48 | 24V DC | 40 w/m | 3000K±100K |
|
LED Type |
2835 SMD |
Input Voltage |
24V DC |
|
|
LED Brightness |
22-26Lm |
Peak Power (w/m) |
40 w/m |
|
|
LED Density |
640 Four Lines |
Measured Power (w/m) |
40 w/m |
|
|
Cuttable Segments |

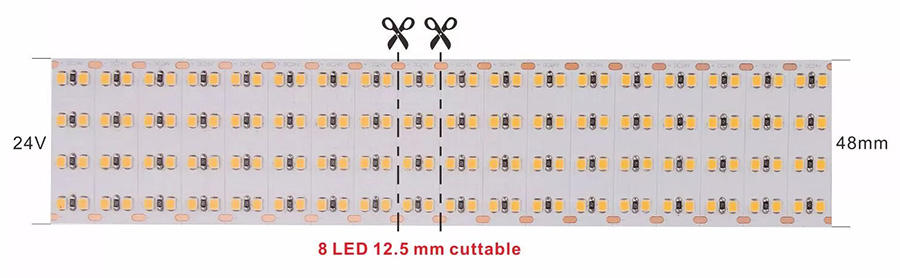

8 Leds/12.5 mm (DC24V) |
Lumen (Lm/m) |
3800 Lm |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
90+ |
|
|
PCB Width |
48 mm |
IP Grade |
IP20/IP54/IP65 |
|
|
Max Run Length |
10 m |
Warranty |
3 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
| Model | LED Type | LED Qty | Color | Work VoltageV | Power | Lumen | Ra | Cutting Unit | PCB Size |
| M2835-120-60K-V12-NWP-P7.5 | 2835 | 120 | White | 12V DC | 12W/M | 1480～1520 Lm | >80 | 1 LED 8.33 mm | 5000*7.5mm 3 OZ |
| M2835-120-40K-V12-NWP-P7.5 | Natural White | ||||||||
| M2835-120-30K-V12-NWP-P7.5 | Warm White | ||||||||
| M2835-120-60K-V24-NWP-P7.5 | 2835 | 120 | White | 24V DC | 12W/M | 1480～1520 Lm | >80 | 1 LED 8.33 mm | 5000*7.5mm 3 OZ |
| M2835-120-40K-V24-NWP-P7.5 | Natural White | ||||||||
| M2835-120-30K-V24-NWP-P7.5 | Warm White | ||||||||
| VM2835-T480-60K-V24-NWP-P36 | 2835 |
480 Three Lines |
White | 24V DC | 35W/M | 3800～4200 Lm | >80 | 6 LED 12.5 mm | 5000*36mm 3 OZ |
| VM2835-T480-40K-V24-NWP-P36 | Natural White | ||||||||
| VM2835-T480-30K-V24-NWP-P36 | Warm White | ||||||||
| VM2835-S600-60K-V24-NWP-P48 | 2835 |
600 Six Lines |
White | 24V DC | 40W/M | 4400～4800 Lm | >80 | 6 LED 10 mm | 5000*48mm 3 OZ |
| VM2835-S600-40K-V24-NWP-P48 | Natural White | ||||||||
| VM2835-S600-30K-V24-NWP-P48 | Warm White |
Shorter cutting unit, without shadow from the edge.
Mini cut led strip
Standard led strip
- Model No:M2835-120-V12/24
- 120LEDs/m
- Model No: M2835-D320-V24
- 320LEDs/m Double Lines
- Model No: M2835-T420-V24
- 420LEDs/m Three Lines
- Model No: M2835-F640-V24
- 640LEDs/m Four Lines
