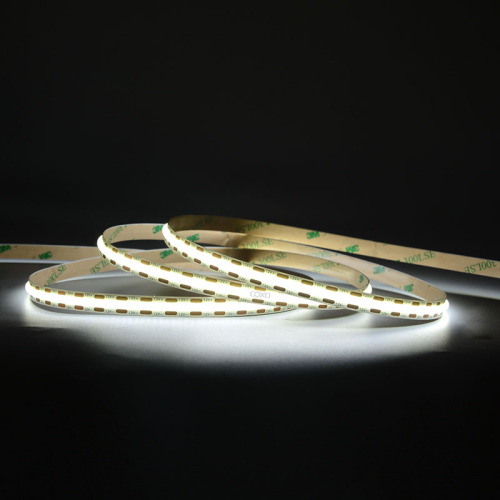

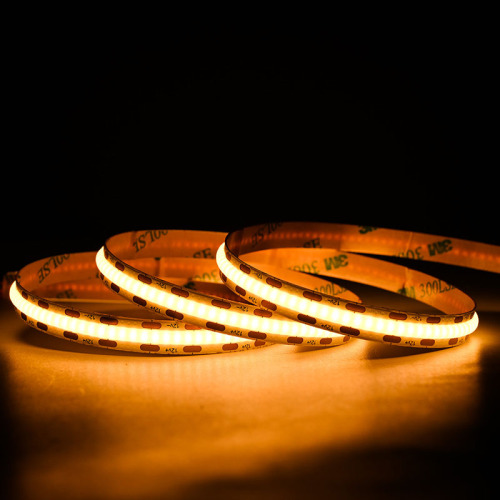

COB LED Strip

A5000-400-V12-R90-P8

Item No.: 00803
Short-cut COB LED Strip is designed to provide us short cutting unit dot-free effect lighting, mini 10mm cuttable.
Invisible resistors, making a clear appearance.
Better bending performance with flip chips.
180°view angle, high color efficiency.
  • LED TypeCOB
  • LED Density400LEDS/M
  • Input Voltage12/24V DC
  • Peak Power Per Meter9W/M
  • LED Brightness820-900LM/M
  • Ra>90
  • PCB Width5000*8mm
  • PCB Thickness2 OZ
  • Cuttable Segments10mm(12V) 20mm(24V)
  • IP GradeIP20
  • CertificateUL/CE/BIS/ROHS/ERP
  • Warranty3 Years
  • More Less
    Description Review
    Description

    COB LED Strip Features:

    • New COB Packing technology in the flexible PCB.
    • Dot free without cover.
    • 10mm length short cut design.
    • Ra>80, Ra>90, 3 years warranty.



    Model No LED Density    CCT Cutting Unit Work Voltage PCB Size Peak Power
    A5000-400-65K-V12-R90-NWP-P8 400leds/m 6500±300K

    10mm(12V)

    20mm(24V)

    12V/24V DC

    5000*8mm

    2 oz

    9W/M
    A5000-400-40K-V12-R90-NWP-P8 400leds/m 4000±200K
    A5000-400-30K-V12-R90-NWP-P8 400leds/m 3000K±100K
    A5000-400-R-V12-NWP-P8 400leds/m Red/Green/Blue



    LED Type

       COB



    Input Voltage

    12V/24V DC

    Color

    3000K/4000K/6500K/R/G/B

    Peak Power Per Meter

    9 w/m

    LED Density

    400  pcs/m

    Power Per Roll ( 5 meters)

    45 w/roll

    Cuttable Segments

    10mm(12V)

    20mm(24V)

    Lumen

    850-900Lm

    PCB Type/Color

    2 oz, White PCB

    Ra

    >90

    PCB Width

    8 mm

    IP Grade

    IP20

    Max Run Length

    5 m

    Warranty

    3 Years

    Reel Length

    5 m

    Certification

    UL CE  RoHS







     Short-cut COB LED Strip:

    1.Short-cut COB LED Strip is designed to provide us short cutting unit dot-free effect lighting, minimum 10mm cuttable.
    2.Invisible resistors, making a clear appearance.
    3.Better bending performance with flip chips.
    4.180°view angle, high color efficiency.
    5.3mm, 4.5mm, 5mm wide ultra narrow PCB available.

    A5000-400-R90-P8

      Basic Parameters
      Size   5000*8mm 2oz(25/25)
      LED Type   COB
      LED Qty/M   400
      Input Voltage   12V/24V DC
      Cutting Unit   10mm(12V) 20mm(24V)
      Input Current   0.75A/M / 0.375A/M
      Max Power/M   9W/M
      Bend Diameter   >60MM
      IP Grade   IP20/IP67/IP67S
      Photo-electric Parameters
      CRI   >90
      CCT   2700K/3000K/4000K/6500K/Red/Green/Blue/Yellow
      LM/M   820-900LM/M
      LM/W   95-100LM/W
      Energy Efficiency Class   F

    NEW TREND LINEAR LIGHT

                  ——COB LED STRIP

                             ——CHIP DIRECT ON FPC

    TECHNOLOGY REVOLUTION, REDEFINE LED STRIP INDUSTRY

    CHIP-ON-FPC

    • Without traditional led bracket, golden wire, cob led strip light is with better bending

    performance and more efficient heat transfer.

    • 1 chip not work, the section still works with better consistency.
    • Invisible resistors, clear appearance.

    FLEXIBLE

    • Flexible, slim for kinds of application
    • Easy installation
    • Bend the strips without breaking it
    • Ultra high density linear light, dot-free
    • 180°beam angle, high light efficiency

    FEATURES

    Mini Size

           We have slim design COB strip to fit narrow places, smallest 3mm width

    A5000-384-V12-P5 A5000-384-V12-P3

    Full range of choices

      Color   2200k,2700k,3000k,4000k,6000k,CCT,Red,Green,Blue,Yellow,RGB,Digital
      LEDs/M   320/336/384/400/512/528/576/864
      Power/M   5w/8w/9w/11w/12w/15w
      LM/M   600lm/700lm/900lm/1100lm/1500lm
      CRI   CRI80,CRI90,CRI95
      FPC Width   3mm/4.5mm/5mm/8mm/10mm/12mm
      Voltage   5V/12V/24V DC
      IP Grade   IP20,IP66,IP67,IP67S,IP68

    Full spectrum cob led strip



    Waterproof IP Grade

    IP20

    Non-waterproof

    IP66

    Slim shrink cover

    IP67 Tube

    IP67s

    Tube extrusion

    IP68

    Full silicon extrusion

    Led connectors for cob strip

    Package information
