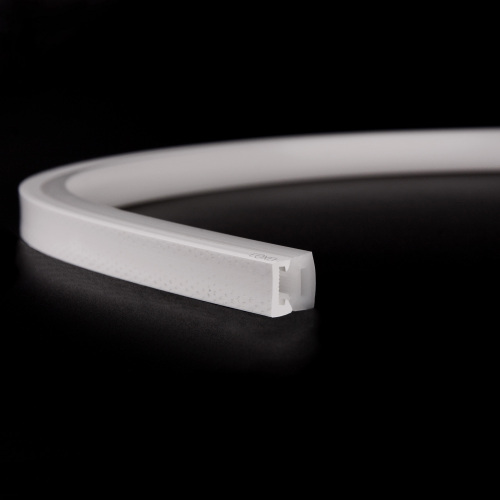

Top Bend Neon Light Tube:

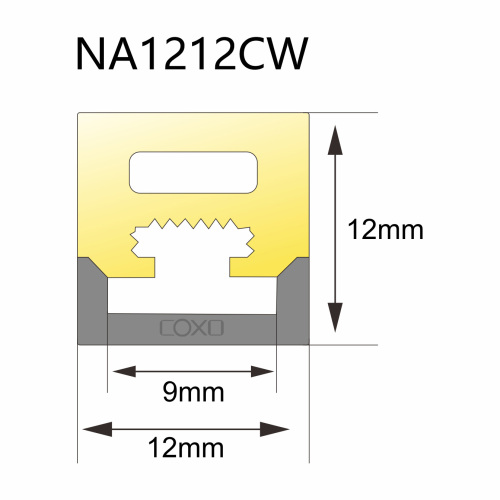

- Section size: 12*12mm,tolerance ±0.2mm.
- Applicable PCB width: 8mm, 12W/M is recommended.
- Recommended lamp bead type: 2835LED/2216LED/4040LED.
- Workmanship: two-color extrusion silicone tube.
- Material: fumed silicone, 131g/m.
- Packaging: 200m/roll.
| Model |
PCB |
LED |
Size (mm) |
| NA1212CW |
8mm |
2835/3838 |
W12*H12
|
 |
Made of Dow coring silicone, the quality of each batch can be guaranteed to be consistent.
|
|
Light-emitting surface is same among different batch. No deviation in the light-emitting color.
|
 |
 |
Anti-UV, anti-aging, anti-yellowing.
|
|
Stable, fire-retardant, heat-resistant, and cold-resistant, keep stable at -60℃ (or lower temperature) to +250℃ (or higher temperature).
|
 |
|
1.cut according to your needs.
|
2.Apply silicone glue at the end.
|
3.Put the end cap to firmly fit the light.
|
4.Wipe off redundant glue with a rag.
|
|
With complete accessories
|
 |
Customized solution
Customized solution will be provided based on requirements, production only begin after final confirmation.
|
 |
Free design
Free design of packaging, product picture, logo and etc by our designers.
|
 |
Quality assurance
Product quality assurance, timely after-sales service, fix all the problems in the first time.
|
