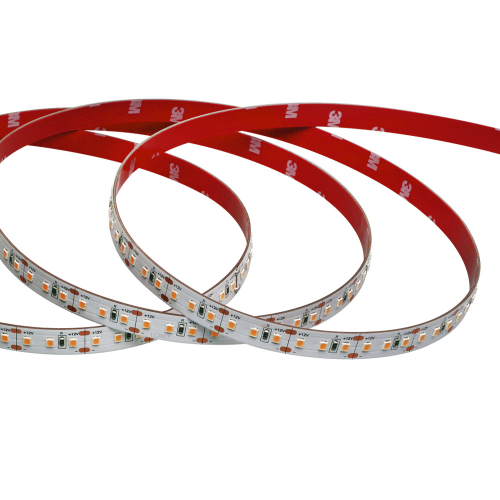

P2835-120-V12-R97-P8

Name: P2835-120-V12-R97-P8
Brand: SHENZHEN COXO TECHNOLOGY CO.,LIMITED
SKU: P2835-120-V12
Availability: InStock
Rating: 5 (1 reviews)

Item No.: P2835-120-V12

LED TypeSMD 2835

LED Density120LEDs/M

Input Voltage12V DC

Peak Power Per Meter16W/M

LED Brightness1210-1350Lm/M

Ra97+

PCB Width8mm

PCB Thickness3 OZ

Cuttable Segments3 LEDs 25mm

IP GradeIP20/IP54/IP65/IP67/IP68

CertificateUL/CE/RoHS

Warranty5 Years

Request Quote Contact Us PDF Format

Description Review

Description

Film & Photography Strip Features:

Coxo's film and photography LED Strips are especially designed for the Film, Broadcasting and Cinema industries.
Spectrally tuned for cameras.
High CRI (97+), R9(92+) & TLCI (96+) scales.
Tungsten (3200K),daylight (5600K) and Bicolor (3200-5600K) are all available.
5 Years Warranty,Life span 50,000+ hours.

Model No	LED Density	CCT	Work Voltage	Power	Ra	Brightness	Cutting Unit	Size
P2835-120-56K-V12-NWP	120 leds/m	5600K±150K	DC12V	16 W/M	>97	1350Lm/M	3 LEDs 25mm	5000*8mm 3 OZ
P2835-120-32K-V12-NWP	120 leds/m	3200K±75K	DC12V	16 W/M	>97	1210Lm/M	3 LEDs 25mm	5000*8mm 3 OZ

LED Type	2835 SMD	Input Voltage	12V DC
Adhesive Tape	3M 9495LE 300MP	Peak Power (w/m)	16 w/m
LED Density	120 pcs/m	Measured Power (w/m)	16 w/m
Cuttable Segments	25mm/3 led (DC12V)	Lumen	1210-1350Lm/m
PCB Type/Color	3 oz, White PCB	Ra	97+
PCB Width	8 mm	IP Grade	IP20/IP54/IP65/IP67/IP68
Max Run Length	10 m	Warranty	5 Years
Reel Length	5 m	Certification	UL CE RoHS

CRI 98 TLCI 2012 : 99

Model	LED Type	LED Qty	CCT	Work Voltage	Power	Lumen	Ra	Cutting Unit	Size
P2835-60-56K-V12-NWP	SMD 2835	60	5600K±150K	12V DC	10W/M	850Lm	>97	3 LEDs 50mm	5000*8mm 3 OZ
P2835-60-32K-V12-NWP			3200K±75K			820Lm
P2835-120-56K-V12-NWP	SMD 2835	120	5600K±150K	12V DC	16W/M	1350Lm	>97	3 LEDs 25mm	5000*8mm 3 OZ
P2835-120-32K-V12-NWP			3200K±75K			1210Lm
P2835-240-56K-V24-NWP	SMD 2835	240	5600K±150K	24V DC	24W/M	1920Lm	>97	6 LEDs 25mm	5000*10mm 3 OZ
P2835-240-32K-V24-NWP			3200K±75K			1850Lm

Professional strip for photography & film lighting

Quality lighting and imagery are the ultimate pursuit for photography and video. There is no doubt that lighting plays a crucial role in both still and motion picture capture.

The lighting industry generally defines CRI as an average of R1-R8 scores, and does not include saturated colors such as dark reds(R9) and dark blues(R12). However our strips score highly on a full range of R values, covering all of the 15 color samples. Of particular importance is R9 and R12, which are the critical color elements of red and blue.

COXO LED CRI Values (98 CRI)
