Home > SPI Digital LED Strip > 5V SK6812 RGBW Strip

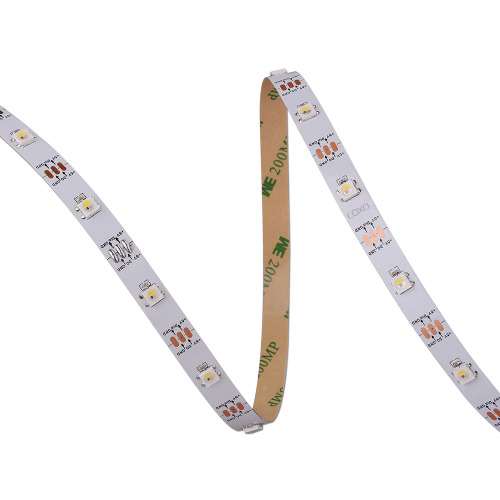

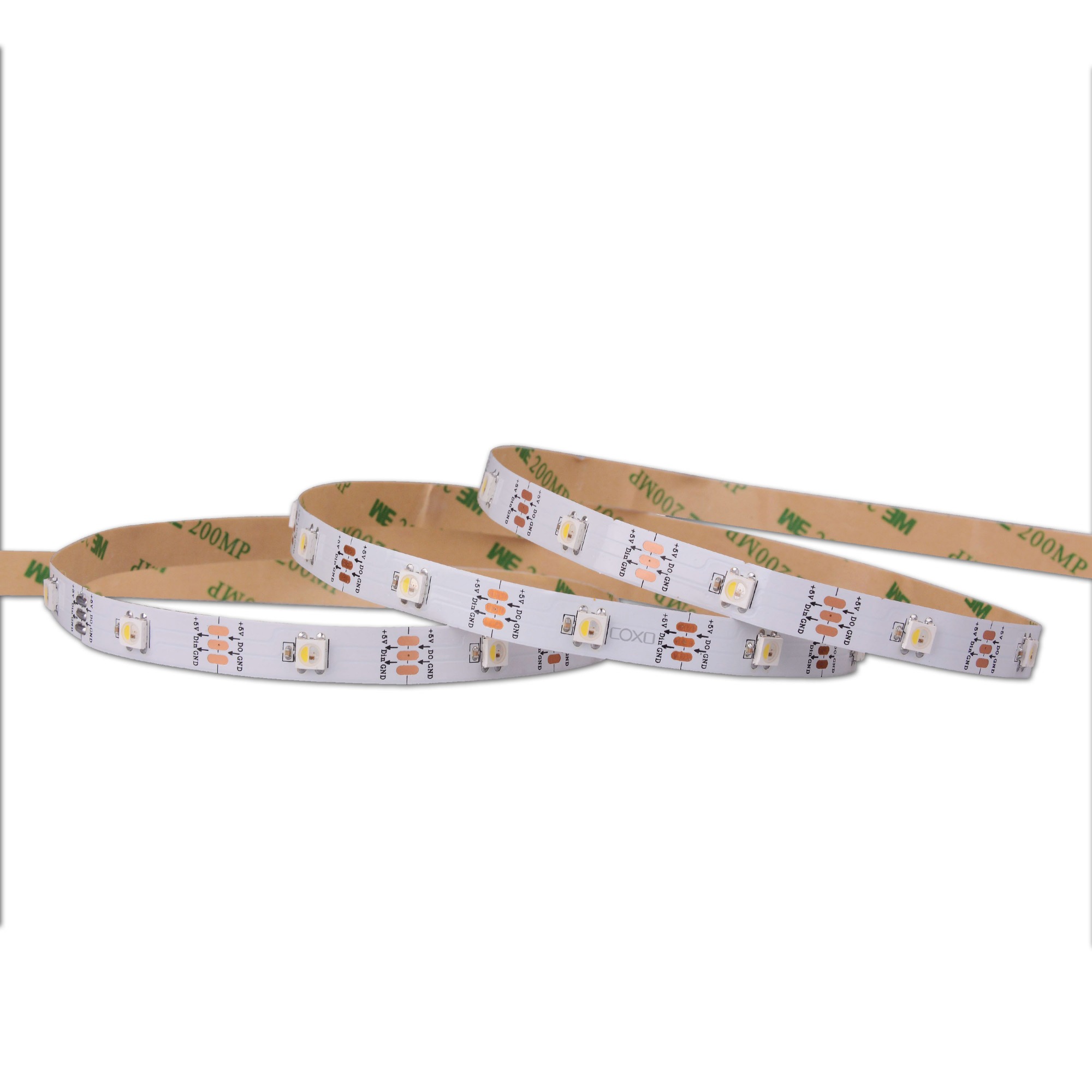

SK6812-30-RGBW-V5-R80-P10
SK6812-30-RGBW-V5-R80-P10 SK6812-30-RGBW-V5-R80-P10 SK6812-30-RGBW-V5-R80-P10 SK6812-30-RGBW-V5-R80-P10

SK6812-30-RGBW-V5-R80-P10

Item No.: 00693
  • LED Type6812
  • LED Density30 LEDs/M
  • Input Voltage5V DC
  • Peak Power Per Meter7.2 W/M
  • LED Brightness2000-2400 MCD & 7-9 Lm
  • Ra80+
  • PCB Width10mm
  • PCB Thickness2 OZ
  • Cuttable Segments1 LEDs / 33.3 mm
  • IP GradeIP20/IP54/IP65/IP67/IP68
  • CertificateUL/CE/RoHS/BIS
  • Warranty3 Years
    • More Less
    Request Quote PDF Format
    Description Review
    Description

    SK6812 RGBW Led Strip:

    • 5050 RGBW dynamic color with bulit-in IC SK6812.
    • 1 IC drivers 1 LED, each LED is addressable and cuttable.
    • Waterproof IP rating: IP20, IP54, IP65, IP67, IP68. IP20, IP54, IP65 are with 3M tape on the backside.
    • Customized service available, 3 Years Warranty.
    Model No LED Density Pixel Qty IC Model Color Work Voltage Peak Power
    S6812-30-RGBW-V5-NWP 30 leds/m 30 pixels/m SK6812 RGB+6000K DC5V 7.2 W/M
    S6812-30-RGBNW-V5-NWP 30 leds/m 30 pixels/m SK6812 RGB+4000K DC5V 7.2 W/M
    S6812-30-RGBWW-V5-NWP 30 leds/m 30 pixels/m SK6812 RGB+3000K DC5V 7.2 W/M



      LED Type 5050 SMD        Input Voltage 5V DC
      IC Model SK6812        LED Density 30 led/m
      Cuttable Segments 1 LEDs 33.3mm        Power 7.2 w/m
      PCB Thickness  2 OZ        Colour RGBW
      PCB Width 10mm        IP Grade IP20/IP54/IP65/IP67/IP68
      Max Run Length 5 m        Warranty 3 Years
      Reel Length 5 m        Certification UL CE  RoHS BIS

     RGBW SK6812 led strip light

    • 12VDC Voltage drop less, 1LED 1 Pixel, Dual-signal wires version, signal break-point continuous transmission.

    Connection and Wiring Diagram

    Product Details



    Individually Addressable

            Each led with IC inside, everyone is addressable.

    Cuttable

    Each single pixel is cuttable, the rest pixel can work well.

    Smart Control

         Work with SPI WIFI controller, Alexa, Google Home,Tuya Controllable.

    IP Grade
    • IP20, IP54, IP65 with 3M adhesive tape on the backside.
    • IP67 and IP68 are without 3M adhesive tape.

    • IP20: Non-waterproof
    • IP54: Paint a thin layer of silicon glue on the cover
    • IP65: Waterproof in silicon coating
    • IP67: Waterproof in silicon tube
    • IP68: Waterproof in sealed silicon tube

    IP20

    Non-waterproof

    IP66

    Slim shrink cover

    		 IP67 Tube

    IP67S

    Tube extrusion

    IP68

    Full silicon extrusion

    Package Information

    Application
    • Advertising Lighting, KTV Home Decoration, Electronic DIY, Pixel Screen Production etc.
