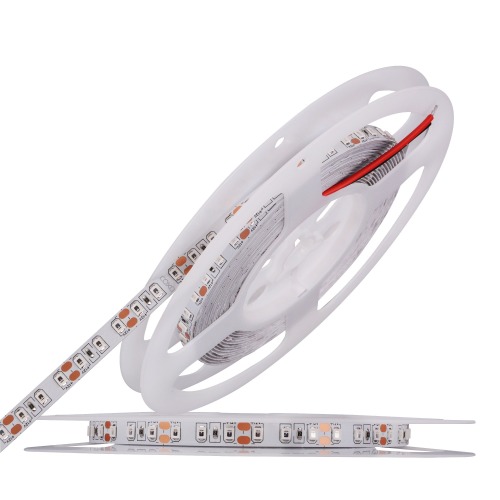

UV Strip

A2835-120-UV-12V-P8

Item No.: 00603
  • LED TypeSMD2835
  • LED Density120 LEDs/M
  • Input Voltage12V DC
  • Peak Power Per Meter10 W/M
  • LED Brightness400-600 MCD
  • Ra--
  • PCB Width8 mm
  • PCB Thickness2 OZ
  • Cuttable Segments3 LEDs / 25 mm
  • IP GradeIP20/IP54/IP65/IP67/IP68
  • CertificateUL/CE/RoHS/BIS
  • Warranty2 Year
  • More Less
    Description Review
    Description

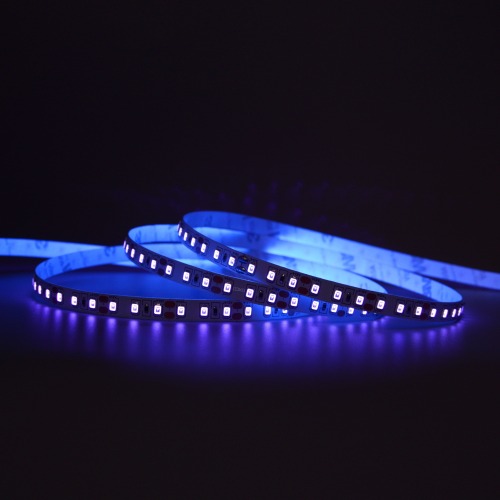

    COXO UV LED Strip Feature:

    • SMD2835 120leds/m ultraviolet UV led strip.
    • Wavelength choices: 360-370nm, 390-400nm, 400-410nm.
    • Application: UV Curing, UV Printing, UV Exposure, Nail Polish Curing, UV Security,Banknote checking, Mosquito Killer...
    • Waterproof IP rating: IP54, IP65, IP67, IP68.



    Model No LED Type
    LED Density   Work Voltage Power Wavelength Cut length LED Brightness Size
    A2835-120-UV365-V12-NWP

    SMD

    2835

    120 led/m 12V DC 10 w/m 360-370 nm 3 leds / 25mm 300-400MCD

    5000*8mm

    2 OZ

    A2835-120-UV395-V12-NWP 390-400 nm 400-600MCD
    A2835-120-UV405-V12-NWP 400-410 nm 400-600MCD

    LED Type

    2835 SMD



    Input Voltage

    12V DC

    LED Brightness 360-410 MCD Peak Power 10 w/m

    LED Density

    120  pcs/m

    Power Per Roll(w/roll)

    50w (5 meters)

    Cuttable Segments

    3 LEDs / 25 mm (12 V)

    Lumen (Lm/m)

    --

    PCB Type/Color

    2 oz, White PCB

    Ra

    --

    PCB Width

    8 mm

    IP Grade

    IP20/IP54/IP65/IP67/IP68

    Max Run Length

    10 m

    Warranty

    2 Year

    Reel Length

    5 m

    Certification

    UL CE BIS RoHS

    Ultraviolet 360-410nm UV LED Strip

    Model LED Type LED Qty Color Wavelength Work Voltage Power Brightness Cutting Unit Size
    A2835-60-UV365-V12-NWP SMD 2835 60 Ultraviolet 360-370 nm 12V DC 6W/M 300-400MCD 3 LEDs 50mm

    5000*8mm

    2 OZ

    A2835-60-UV395-V12-NWP Ultraviolet 390-400 nm 400-600MCD
    A2835-60-UV405-V12-NWP Ultraviolet 400-410 nm 400-600MCD
    A2835-120-UV365-V12-NWP SMD 2835 120 Ultraviolet 360-370 nm 12V DC 10W/M 300-400MCD 3 LEDs 25mm

    5000*8mm

    2 OZ

    A2835-120-UV395-V12-NWP Ultraviolet 390-400 nm 400-600MCD
    A2835-120-UV405-V12-NWP Ultraviolet 400-410 nm 400-600MCD
    A2835-240-UV365-V24-NWP SMD 2835 240 Ultraviolet 360-370 nm 24V DC 18W/M 300-400MCD 6 LEDs 25mm

    5000*10mm

    3 OZ

    A2835-240-UV395-V24-NWP Ultraviolet 390-400 nm 400-600MCD
    A2835-240-UV405-V24-NWP Ultraviolet 400-410 nm 400-600MCD
    A2835-240-UV365-V24-NWP SMD 2835

    240

    Double Lines

    Ultraviolet 360-370 nm 24V DC 24W/M 300-400MCD 6 LEDs 25mm

    5000*15mm

    3 OZ

    A2835-240-UV395-V24-NWP Ultraviolet 390-400 nm 400-600MCD
    A2835-240-UV405-V24-NWP Ultraviolet 400-410 nm 400-600MCD

    SMD 2835 & 5050

    SMD2835 60led

    DC 12/24V

    8W/M

    8mm wide

    SMD 2835 120led

    DC 12/24V

    14W/M

    8mm wide

    SMD5050  60led

    DC 12/24V

    12W/M

    10mm, 12mm wide

    waterproof
    • IP54 waterproof
    • IP65 waterproof
    • IP67 waterproof
    • IP68 waterproof

    Wavelength Choices

    • 360-370nm
    • 390-400nm
    • 400-410nm

    UVA Application

    • UV Security, Banknote checking
    • UV curving coatings
    • UV Mosquito Killer
    • UV Nail polish curving
    • UV printing curving
    • UV Exposure

    UV Spectrum

    UVC Customized Solution

    Different types of UV LEDs can be customized to work with various solutions

    1~3W UVC

    3535 UVC with lens

    COB UVC

    UV3535H

    (270-280nm)

    UV3535M

    (265-280nm)

    UV3535K

    (265-280+390nm)

    UV3535J

    (360-265nm)

    UVC Application

    UVC LED toothbrush sterilizer

    UVC LED portable sterilizer

    UVC LED contact lens cleaning sterilizer

    UVC LED sterilization humidifier

    Air steriliztion

    Water Sterilization

    Steriliztion

    Air Purification

    Sterilization
