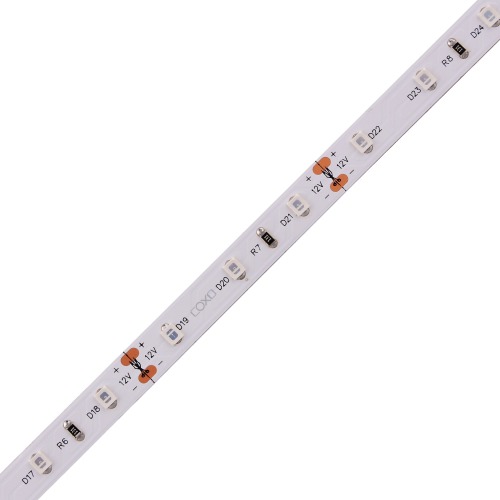

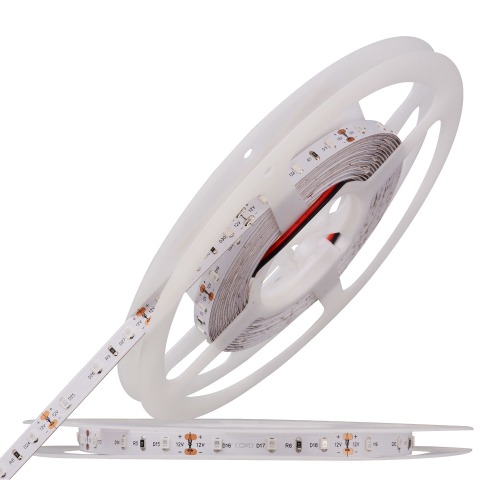

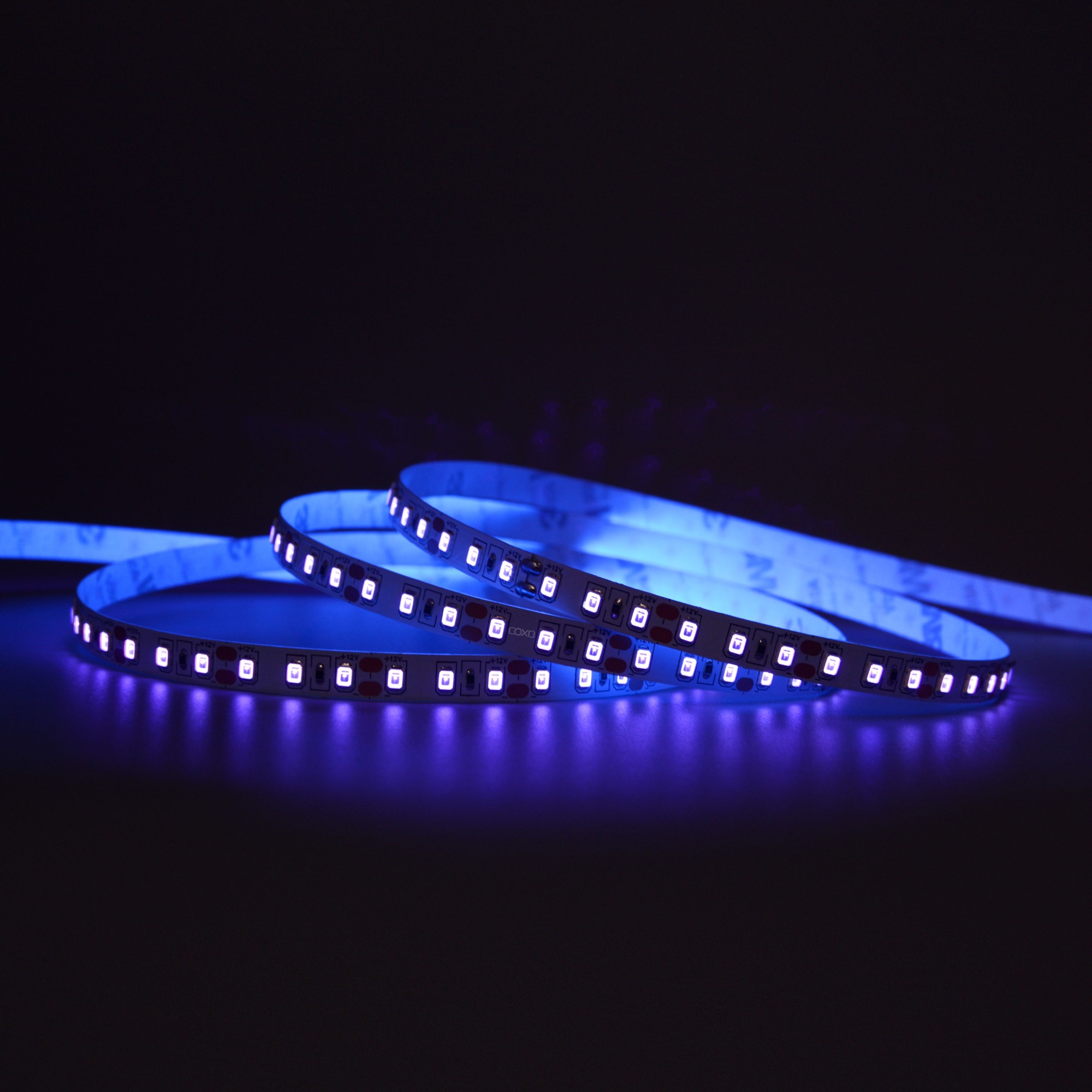

COXO UV LED Strip Feature：
- SMD2835 60leds/m ultraviolet UV led strip.
- Wavelength choices: 360-370nm, 390-400nm, 400-410nm.
- Application: UV Curing, UV Printing, UV Exposure, Nail Polish Curing, UV Security,Banknote checking, Mosquito Killer.
- Waterproof IP rating: IP54, IP65, IP67, IP68.
| Model No | LED Density | Work Voltage | Power | Wavelength | Cut length | LED Brightness | Size |
| A2835-60-UV365-V12-NWP | 60 led/m | 12V DC | 6 w/m | 360-370 nm | 3 leds / 50mm | 300-400MCD | 5000*8mm 2 OZ |
| A2835-60-UV395-V12-NWP | 390-400 nm | 400-600MCD | |||||
| A2835-60-UV405-V12-NWP | 400-410 nm | 400-600MCD |
 |
|
LED Type |
2835 SMD |
Input Voltage |
12V DC |
|
| LED Brightness | 400-600 MCD | Peak Power | 6 w/m | |
|
LED Density |
60 pcs/m |
Power Per Roll(w/roll) |
30w (5 meters) |
|
|
Cuttable Segments |
3 LEDs / 50 mm (12 V) |
Lumen (Lm/m) |
-- |
|
|
PCB Type/Color |
2 oz, White PCB |
Ra |
-- |
|
|
PCB Width |
8 mm |
IP Grade |
IP20/IP54/IP65/IP67/IP68 |
|
|
Max Run Length |
10 m |
Warranty |
2 Year |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS |
| Model | LED Type | LED Qty | Color | Wavelength | Work Voltage | Power | Brightness | Cutting Unit | Size |
| A2835-60-UV365-V12-NWP | SMD 2835 | 60 | Ultraviolet | 360-370 nm | 12V DC | 6W/M | 300-400MCD | 3 LEDs 50mm |
5000*8mm 2 OZ |
| A2835-60-UV395-V12-NWP | Ultraviolet | 390-400 nm | 400-600MCD | ||||||
| A2835-60-UV405-V12-NWP | Ultraviolet | 400-410 nm | 400-600MCD | ||||||
| A2835-120-UV365-V12-NWP | SMD 2835 | 120 | Ultraviolet | 360-370 nm | 12V DC | 10W/M | 300-400MCD | 3 LEDs 25mm |
5000*8mm 2 OZ |
| A2835-120-UV395-V12-NWP | Ultraviolet | 390-400 nm | 400-600MCD | ||||||
| A2835-120-UV405-V12-NWP | Ultraviolet | 400-410 nm | 400-600MCD | ||||||
| A2835-240-UV365-V24-NWP | SMD 2835 | 240 | Ultraviolet | 360-370 nm | 24V DC | 18W/M | 300-400MCD | 6 LEDs 25mm |
5000*10mm 3 OZ |
| A2835-240-UV395-V24-NWP | Ultraviolet | 390-400 nm | 400-600MCD | ||||||
| A2835-240-UV405-V24-NWP | Ultraviolet | 400-410 nm | 400-600MCD | ||||||
| A2835-240-UV365-V24-NWP | SMD 2835 |
240 Double Lines |
Ultraviolet | 360-370 nm | 24V DC | 24W/M | 300-400MCD | 6 LEDs 25mm |
5000*15mm 3 OZ |
| A2835-240-UV395-V24-NWP | Ultraviolet | 390-400 nm | 400-600MCD | ||||||
| A2835-240-UV405-V24-NWP | Ultraviolet | 400-410 nm | 400-600MCD |
- IP54 waterproof
- IP65 waterproof
- IP67 waterproof
- IP68 waterproof
- 360-370nm
- 390-400nm
- 400-410nm
- UV Security, Banknote checking
- UV curving coatings
- UV Mosquito Killer
- UV Nail polish curving
- UV printing curving
- UV Exposure
Different types of UV LEDs can be customized to work with various solutions
