UV Strip

A5050-60-UV-12V-P10

Item No.: 00614
  • LED TypeSMD5050
  • LED Density60 LEDs/M
  • Input Voltage12V DC
  • Peak Power Per Meter12 W/M
  • LED Brightness300-400 MCD
  • Ra--
  • PCB Width10 mm
  • PCB Thickness2 OZ
  • Cuttable Segments3 LEDs / 50 mm
  • IP GradeIP20/IP54/IP65/IP67/IP68
  • CertificateUL/CE/RoHS/BIS
  • Warranty2 Year
  • More Less
    Description Review
    Description

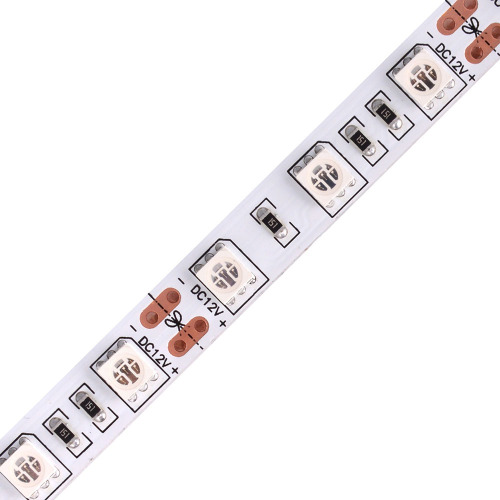

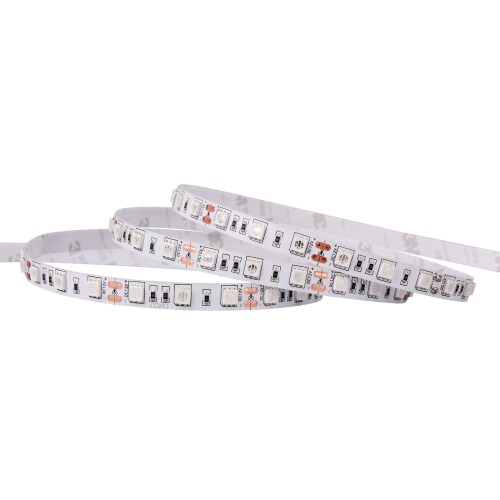

    COXO UV LED Strip Feature:

    • SMD5050 60leds/m ultraviolet UV led strip.
    • Wavelength choices: 390-400nm, 400-410nm.
    • Application: UV Curing, UV Printing, UV Exposure, Nail Polish Curing, UV Security,Banknote checking, Mosquito Killer.
    • Waterproof IP rating: IP54, IP65, IP67, IP68.



    Model No LED Density   Work Voltage Power Wavelength Cut length LED Brightness
    A5050-60-UV365-V12-NWP 60 led/m 12V DC 12 w/m 360-370 nm 3 leds / 50mm 300-400MCD



    LED Type

    5050 SMD



    Input Voltage

    12V DC

    LED Brightness 300-400 MCD Peak Power 12 w/m

    LED Density

    60  pcs/m

    Power Per Roll(w/roll)

    60w (5 meters)

    Cuttable Segments

    3 LEDs / 50 mm (12 V)

    Lumen (Lm/m)

    --

    PCB Type/Color

    2 oz, White PCB

    Ra

    --

    PCB Width

    10 mm

    IP Grade

    IP20/IP54/IP65/IP67/IP68

    Max Run Length

    10 m

    Warranty

    2 Year

    Reel Length

    5 m

    Certification

    UL CE BIS RoHS

    Ultraviolet 360-410nm UV LED Strip

    Model LED Type LED Qty Color Wavelength Work Voltage Power Brightness Cutting Unit Size
    A5050-60-UV365-V12-NWP SMD 5050 60 Ultraviolet 360-370 nm 12V DC 12W/M 300-400MCD 3 LEDs 50mm

    5000*10mm

    2 OZ

    A5050-D120-UV365-V24-NWP SMD 5050

    120

    Double Line

    Ultraviolet 360-370 nm 24V DC 24W/M 300-400MCD 6 LEDs 50mm

    5000*15mm

    2 OZ

    SMD 2835 & 5050

    SMD2835 60led

    DC 12/24V

    8W/M

    8mm wide

    SMD 2835 120led

    DC 12/24V

    14W/M

    8mm wide

    SMD5050  60led

    DC 12/24V

    12W/M

    10mm, 12mm wide

    waterproof
    • IP54 waterproof
    • IP65 waterproof
    • IP67 waterproof
    • IP68 waterproof

    Wavelength Choices

    • 360-370nm
    • 390-400nm
    • 400-410nm

    UVA Application

    • UV Security, Banknote checking
    • UV curving coatings
    • UV Mosquito Killer
    • UV Nail polish curving
    • UV printing curving
    • UV Exposure

    UV Spectrum

    UVC Customized Solution

    Different types of UV LEDs can be customized to work with various solutions

    1~3W UVC

    3535 UVC with lens

    COB UVC

    UV3535H

    (270-280nm)

    UV3535M

    (265-280nm)

    UV3535K

    (265-280+390nm)

    UV3535J

    (360-265nm)

    UVC Application

    UVC LED toothbrush sterilizer

    UVC LED portable sterilizer

    UVC LED contact lens cleaning sterilizer

    UVC LED sterilization humidifier

    Air steriliztion

    Water Sterilization

    Steriliztion

    Air Purification

    Sterilization
