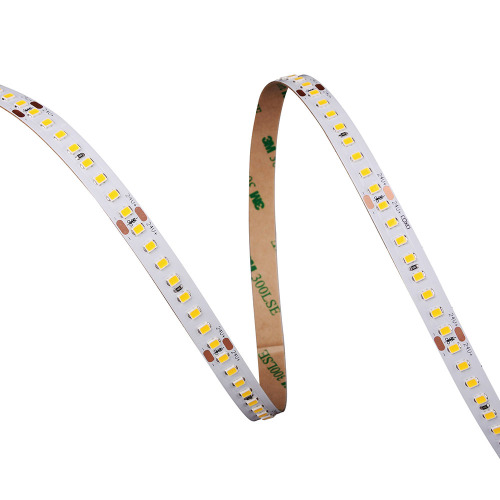

LUX- High Efficiency U Led Strip Features:
- Efficiency>160-170LM/W, with high Ra>92.
- 3 OZ FPC, original high quality 3M 9495LE tape, 8LEDS/cut, with special design strong package. LED with LM-80 Test approval.
- Widely applied in commercial lighting, energy-saving and environment-friendly.
- Customized service available, customized MOQ>1000M, 5 Years Warranty.
| Model No | LED Density | Work Voltage | Power | Ra | CCT | Lumen |
| U2835-160-60K-V24-NWP | 160leds/m |
24V DC |
18W/M | >92 | 6000K±300K | 2880～2980Lm/m |
| U2835-160-50K-V24-NWP | 160leds/m | 18W/M | >92 | 5000K±200K | ||
| U2835-160-40K-V24-NWP | 160leds/m | 18W/M | >92 | 4000K±200K | ||
| U2835-160-35K-V24-NWP | 160leds/m | 18W/M | >92 | 3500K±100K | ||
| U2835-160-30K-V24-NWP | 160leds/m | 18W/M | >92 | 3000K±100K | ||
| U2835-160-27K-V24-NWP | 160leds/m |
18W/M | >92 | 2700K±100K |
|
LED Type |
2835 SMD |
Input Voltage |
24V DC |
|
|
LED Density |
160 pcs/m |
Peak Power (w/m) |
18 w/m |
|
|
Cuttable Segments |
8 LEDs 50mm |
Lumen (Lm/m) |
2880～2980Lm/m |
|
|
PCB Type/Color |
3 oz, White PCB |
Ra |
92+ |
|
|
PCB Width |
10mm |
Warranty |
5 Years |
|
|
Reel Length |
5 m |
Certification |
UL CE BIS RoHS ERP |
| Model | LED Type | LED Qty | CCT | Work Voltage | Power | Lumen | Ra | Cutting Unit | Size |
| U2835-64-60K-V24-NWP |
SMD 2835 |
64leds/m |
6000K±300K |
24V DC |
7.2W/M |
1150～1190Lm/m |
>92 |
8 LEDs 125mm |
5000*8mm 3 OZ |
| U2835-64-50K-V24-NWP | 5000K±200K | ||||||||
| U2835-64-40K-V24-NWP | 4000K±200K | ||||||||
| U2835-64-35K-V24-NWP | 3500K±100K | ||||||||
| U2835-64-30K-V24-NWP | 3000K±100K | ||||||||
| U2835-64-27K-V24-NWP |
2700K±100K |
||||||||
| U2835-128-60K-V24-NWP |
SMD 2835 |
128leds/m |
6000K±300K |
24V DC |
14.4W/M |
2300～2380Lm/m |
>92 |
8 LEDs 62.5mm |
5000*10mm 3 OZ |
| U2835-128-50K-V24-NWP | 5000K±200K | ||||||||
| U2835-128-40K-V24-NWP | 4000K±200K | ||||||||
| U2835-128-35K-V24-NWP | 3500K±100K | ||||||||
| U2835-128-30K-V24-NWP | 3000K±100K | ||||||||
| U2835-128-27K-V24-NWP |
2700K±100K |
||||||||
| U2835-160-60K-V24-NWP |
SMD 2835 |
160leds/m |
6000K±300K |
24V DC |
18W/M |
2880～2980Lm/m |
>92 |
8 LEDs 50mm |
5000*10mm 3 OZ |
| U2835-160-50K-V24-NWP |
5000K±200K |
||||||||
| U2835-160-40K-V24-NWP |
4000K±200K |
||||||||
| U2835-160-35K-V24-NWP |
3500K±100K |
||||||||
| U2835-160-30K-V24-NWP |
3000K±100K |
||||||||
| U2835-160-27K-V24-NWP |
2700K±100K |
||||||||
| U2835-224-60K-V24-NWP |
SMD 2835 |
224leds/m |
6000K±300K |
DC24V |
24W/M |
3840～3960Lm/m |
>92 |
8 LEDs 35.7mm |
5000*10mm 3 OZ |
| U2835-224-50K-V24-NWP |
5000K±200K |
||||||||
| U2835-224-40K-V24-NWP |
4000K±200K |
||||||||
| U2835-224-35K-V24-NWP |
3500K±100K |
||||||||
| U2835-224-30K-V24-NWP |
3000K±100K |
||||||||
| U2835-224-27K-V24-NWP |
2700K±100K |
