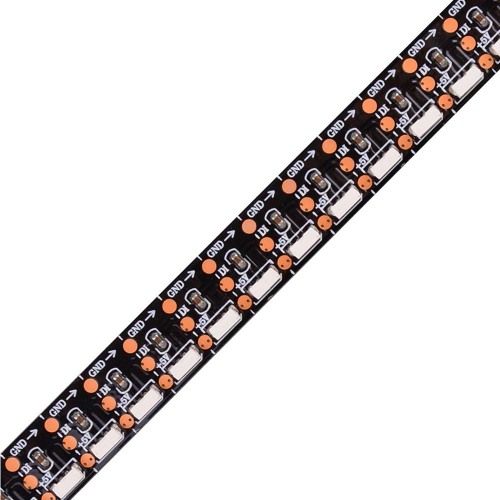

V6812-144-RGB-V5-P10

Name: V6812-144-RGB-V5-P10
Brand: SHENZHEN COXO TECHNOLOGY CO.,LIMITED
SKU: 00743
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 00743

The new SK6812 SMD4020 RGB strip side emitting addressable LED designed for dynamic colorful edge lighting with limited size. Widely used for hotels, restaurants, clubs, home decoration and shopping malls.

LED TypeSMD4020 IC:SK6812

LED Density144 LEDs/M

Input Voltage5V DC

Peak Power Per Meter18 W/M

LED Brightness1600-1800MCD/LED

Ra/

PCB Width10mm

PCB Thickness3 OZ

Cuttable Segments1 LED

IP GradeIP20

CertificateUL/CE/RoHS/BIS

Warranty3 Years

Request Quote Contact Us PDF Format

Description Review

Description

The new SK6812 SMD4020 RGB side emitting addressable LED designed for dynamic colorful edge lighting with limited size.Widely used for hotels, restaurants, clubs, home decoration and shopping malls.
Features:

Digital full color and side emitting;
PWM 2KHz/m,date transmit up to 800kbps,256 grayscale effect;

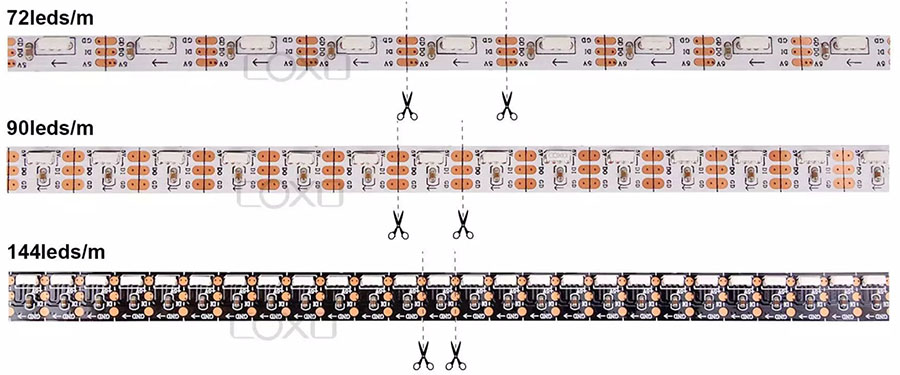

One LED can be cut and individually programmable with super bright SMD4020;
60,72,90,120,140 pixels/m optional,with high density and reliability;
White/Black PCB 5mm,8mm,10mm available;
3 wire with JST connector Date,GND and Power;
IP rate:IP20 and IP67 available.

Model No	LED Density	Color	Cutting Unit	Work Voltage	PCB Size	Peak Power
V6812-144-RGB-V5-NWP-P10	144 leds/m	RGB	1 LED	DC5V	2000*10mm 3oz	18 W/M

LED Type	IC:SK6812 SMD4020	Input Voltage	5V DC
Color	RGB	Peak Power Per Meter	18 w/m
LED Density	144 pcs/m	Power Per Roll	36 w/roll
Cuttable Segments	1 LED	LED Brightness	1600-1800MCD/LED
PCB Color	Black PCB	Ra	/
PCB Size	200010 mm3oz	IP Grade	IP20
Adhesive Tape	3M 9495LE	Warranty	3 Years
Reel Length	2 m	Certification	UL CE RoHS BIS

Side Emitting SK6812 4020

RGB Digital Led Stripe

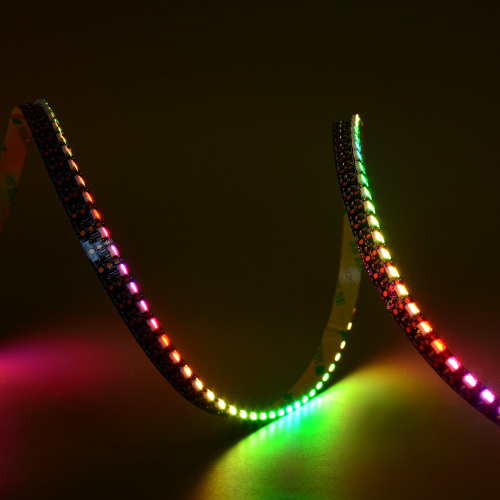

The new sk6812 4020 rgb side emitting addressable LED comes out under the demand of dynamic colorful edge lighting, with limited size for installation of the strip. The skinny side view LED strip creates magical delicate lighting for various applications.

Parameters

Model	IC	LED Qty	Color	Work Voltage	Max Power	LED Brightness	Cutting Unit	PCB Size	Adhesive Tape
V6812-60-RGB-V5-NWP	SK6812	60leds/m	RGB	5V DC	8W/M	1600-1800MCD	1 LED	5000*8mm 2OZ	3M 9495LE
V6812-72-RGB-V5-NWP-P5		72leds/m			10W/M	1600-1800MCD		5000*5mm 2 OZ
V6812-90-RGB-V5-NWP		90leds/m			12W/M	1600-1800MCD		5000*8mm 2 OZ
V6812-120-RGB-V5-NWP		120leds/m			15W/M	1600-1800MCD		5000*8mm 2 OZ
V6812-144-RGB-V5-NWP		144leds/m			18W/M	1600-1800MCD		2000*10mm 3 OZ

Features

	Digital full color Side emitting PWM 2khz/m, Data transmit up to 800kbps, 256 grayscale effect
Each IC SK6812 built in the super bright 4020 SMD RGB LED One LED One address, individually programmable 1 led cuttable
	60, 72, 90, 120, 144 pixels/m optional, with high density and reliability White/Black PCB 5mm, 8mm, 10mm available
3 Wires with JST connector Data, GND and Power
	IP rate: IP20 and IP67 Available

Wiring Diagram

Signal wire: DCC+, DAT, GND
DC+ and GND connect to power supply; DAT and GND connect to controller
Work with SPI controller supporting SK6812

Caution:

Power off the driver before wiring.
Never connect wire “+5V” to “GND” terminal of driver or “GND” wire to “+5V” terminal of driver, otherwise LEDS will be burned.

Application

Widely used for hotels, restaurants, clubs, home, decoration and shopping malls.
Architectural decorative lighting, boutique atmosphere lighting.
Advertisement sign edge lighting.
Decorative lights for holiday, event, show exhibition.
Applicable for computer, automobile and bicycle decoration, border or contour lighting.
