Home > SPI Digital LED Strip > 5V 2813 Strip
S2813-144-RGB-V5-P12
S2813-144-RGB-V5-P12 S2813-144-RGB-V5-P12 S2813-144-RGB-V5-P12 S2813-144-RGB-V5-P12 S2813-144-RGB-V5-P12

S2813-144-RGB-V5-P12

Item No.: 00204
  • LED Type2813
  • LED Density144leds/m
  • Input Voltage5V
  • Peak Power Per Meter20W/M
  • LED Brightness2000-2400MCD/LED
  • Ra/
  • PCB Width12MM
  • PCB Thickness3OZ
  • Cuttable Segments1 LEDs 6.9mm
  • IP GradeIP20/IP54/IP65/IP67/IP68
  • CertificateUL/CE/BIS/ROHS
  • Warranty3 Year
    • More Less
    Request Quote PDF Format
    Description Review
    Description

    WS2813 SPI LED Strip Feature:
    1.Flex digital series WS2813 LED strip provides magic dream color light.
    2.Dual-signal wires version, signal break-point continuous transmission.

    Model No LED Density Pixel Qty IC Model Work Voltage Power Color Minimum cut length
    S2813-144-RGB-V5-NWP 144 led/m 144pcs/m WS2813 5V DC 20 w/m RGB 1 LEDs 6.9mm

      LED Type 2813        Input Voltage 5V DC
      IC Model WS2813        LED Density 144 led/m
      Cuttable Segments 1 LEDs 6.9mm        Power 20 w/m
      PCB Thickness  3 OZ        Colour RGB
      PCB Width 12mm        IP Grade IP20/IP54/IP65/IP67/IP68
      Max Run Length 5 m        Warranty 3 Years
      Reel Length 5 m        Certification UL CE  RoHS BIS

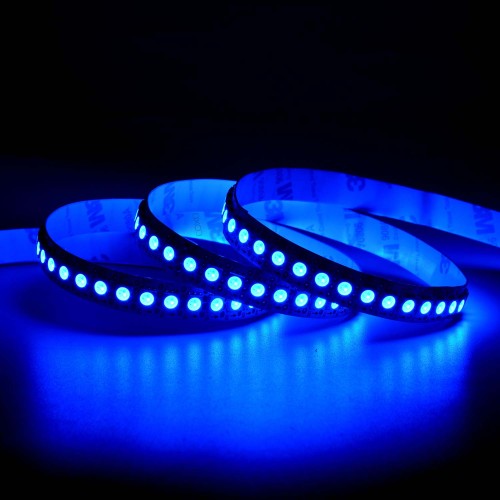

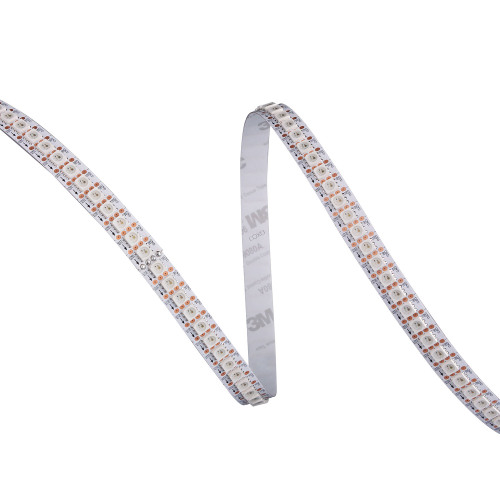

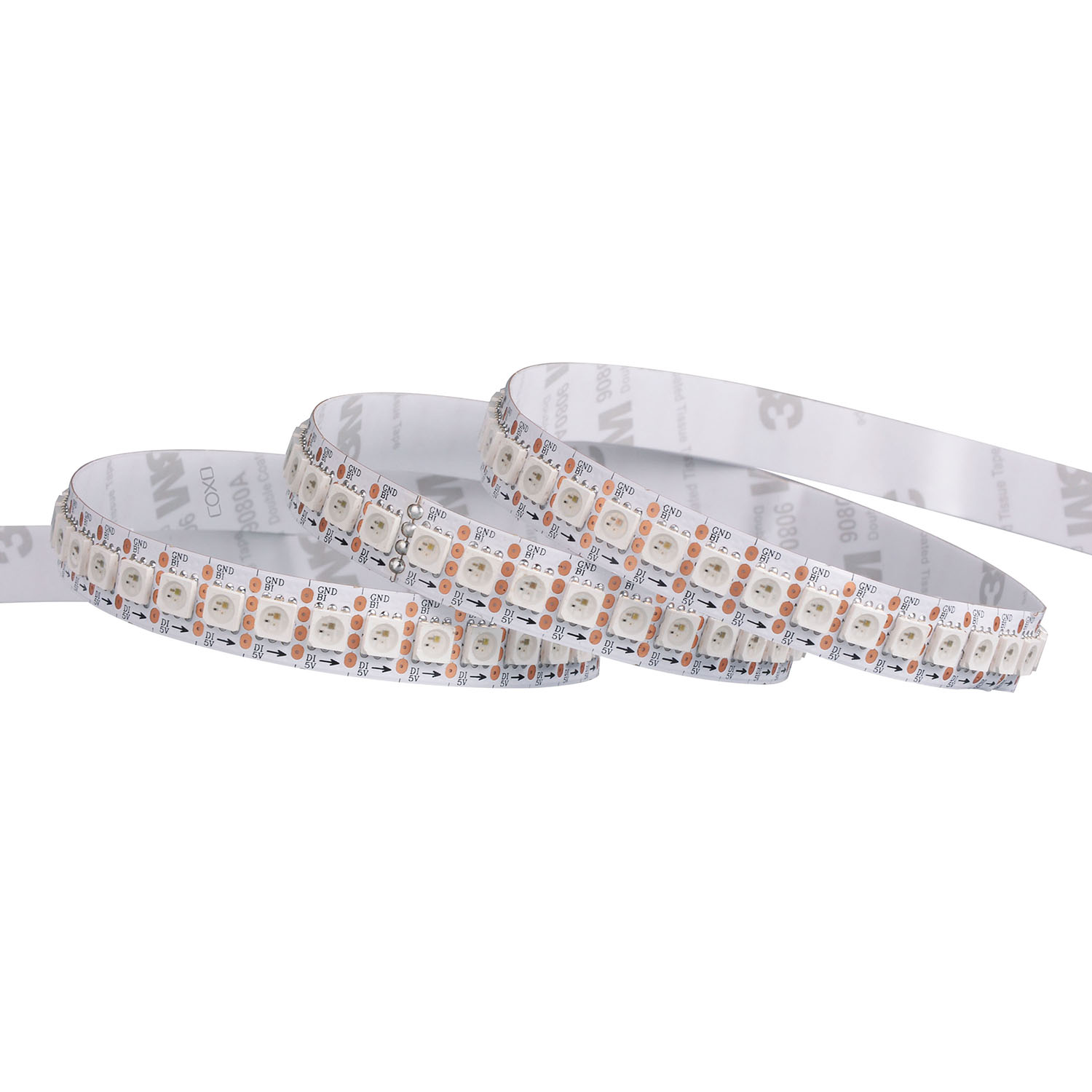

    Digital RGB WS2813 led strip light
    • 1LED 1Pixel, Dual-signal wires version, signal break-point continuous transmission.

    Connection and Wiring Diagram

    Product Details



    Individually Addressable

            Each led with IC inside, everyone is addressable.

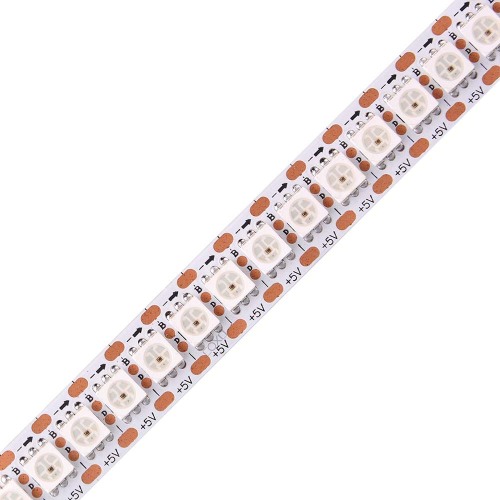

    Cuttable

    Each single pixel is cuttable, the rest pixel can work well.

    Smart Control

         Work with SPI WIFI controller, Alexa, Google Home,       Tuya Controllable.

    IP Grade
    • IP20, IP54, IP65 with 3M adhesive tape on the backside.
    • IP67 and IP68 are without 3M adhesive tape.

    • IP20: Non-waterproof
    • IP54: Paint a thin layer of silicon glue on the cover
    • IP65: Waterproof in silicon coating
    • IP67: Waterproof in silicon tube
    • IP68: Waterproof in sealed silicon tube

    IP20

    Non-waterproof

    IP66

    Slim shrink cover

    		 IP67 Tube

    IP67S

    Tube extrusion

    IP68

    Full silicon extrusion

    Package Information

    Application
    • Advertising Lighting, KTV Home Decoration, Electronic DIY, Pixel Screen Production etc.
